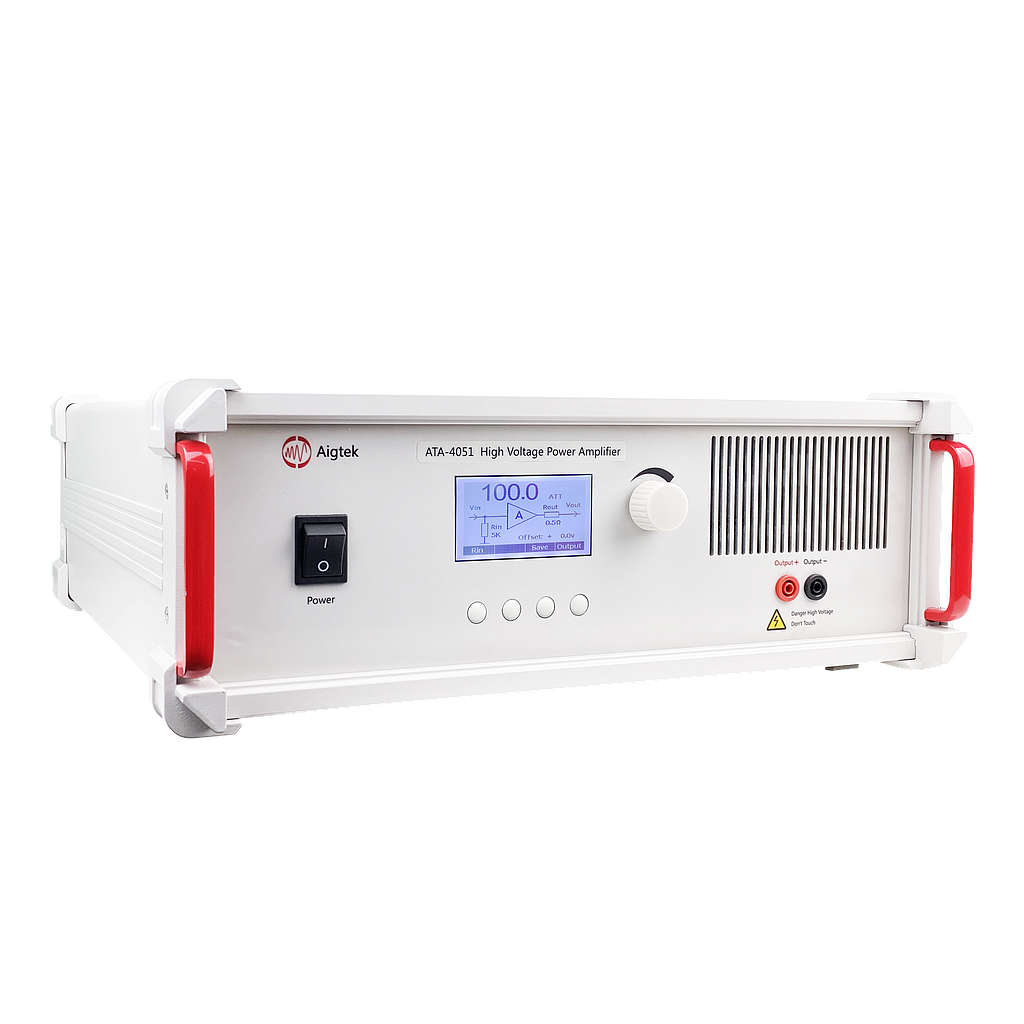

Aigtek ATA-4051 High Voltage Power Amplifier ((-3db) DC ~ 500kHz, 310Vp-p (±155Vp), 1Arms, 218.55Wp, 1CH)

Output form: Single output

Bandwidth(-3dB):  DC~500kHz

Maximum output voltage:  310Vp-p(±155Vp)

Maximum output current:  0.5Ap(DC-50Hz, 1.41Ap,1Arms (50Hz~500kHz)

Maximum output power:  218.55Wp

Fuse:  8A/250V

Voltage gain:  x0~100(0.1step)

Load RL upper limit:  ≥109.6Ω (above 50Hz)

Output impedance:  1Ω+3.2uH

Slew Rate:  400V/μs

DC bias:  ±150V(0.1Vstep)

Input impedance:  50Ω / 5kΩ

Input amplitude:  0~10Vp-pMAX

Output voltage error:  ≤±3%FS@1kHz

Voltage monitoring:  100:1(±5%)

Total harmonic distortion (THD):  ≤0.1%@1kHZ,100Vp-p

Output voltage zero-point drift:  ≤0.1V

Output Connector:  4mm Banana socket

Protection:  Overcurrent protection

Signal Ground:  It is connected with the grounding of the shell and the power line

Supply voltage:  AC220V±10%,50Hz

Operating temperature:  0℃~45℃

Storage temperature:  -20℃~50℃

Humidity:  ≤80% RH,no condensation

Size(W * H * D):  440*163*470mm
