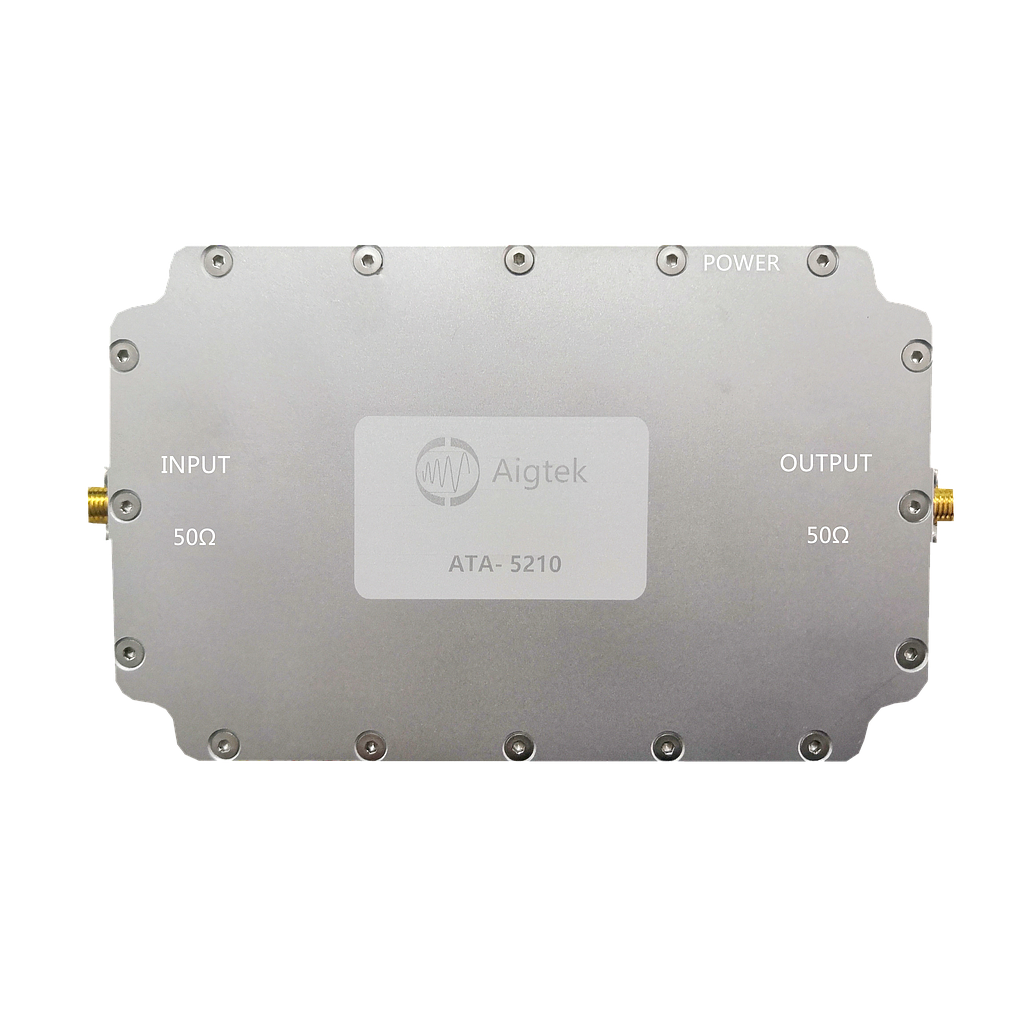

Aigtek ATA-5210 Preamplifier ((-3dB)1kHz~5MHz, 2Vp-p, 46dB)

Bandwidth(-3dB): 1kHz~5MHz

Input resistance: 50Ω

Input conversion Noise voltage: Less than 0.7nV/√Hz  (1kHz) 0.5nV/ √Hz typ (1k~1MHz)

Input conversion Noise current: 7pA/ √Hz typ (10kHz)

Maximum output voltage: 2 Vp-p(50Ω)

Output resistance: 50Ω

Voltage gain: 46 dB

Size (W * H * D): 150*75*250mm

Details

datasheet
