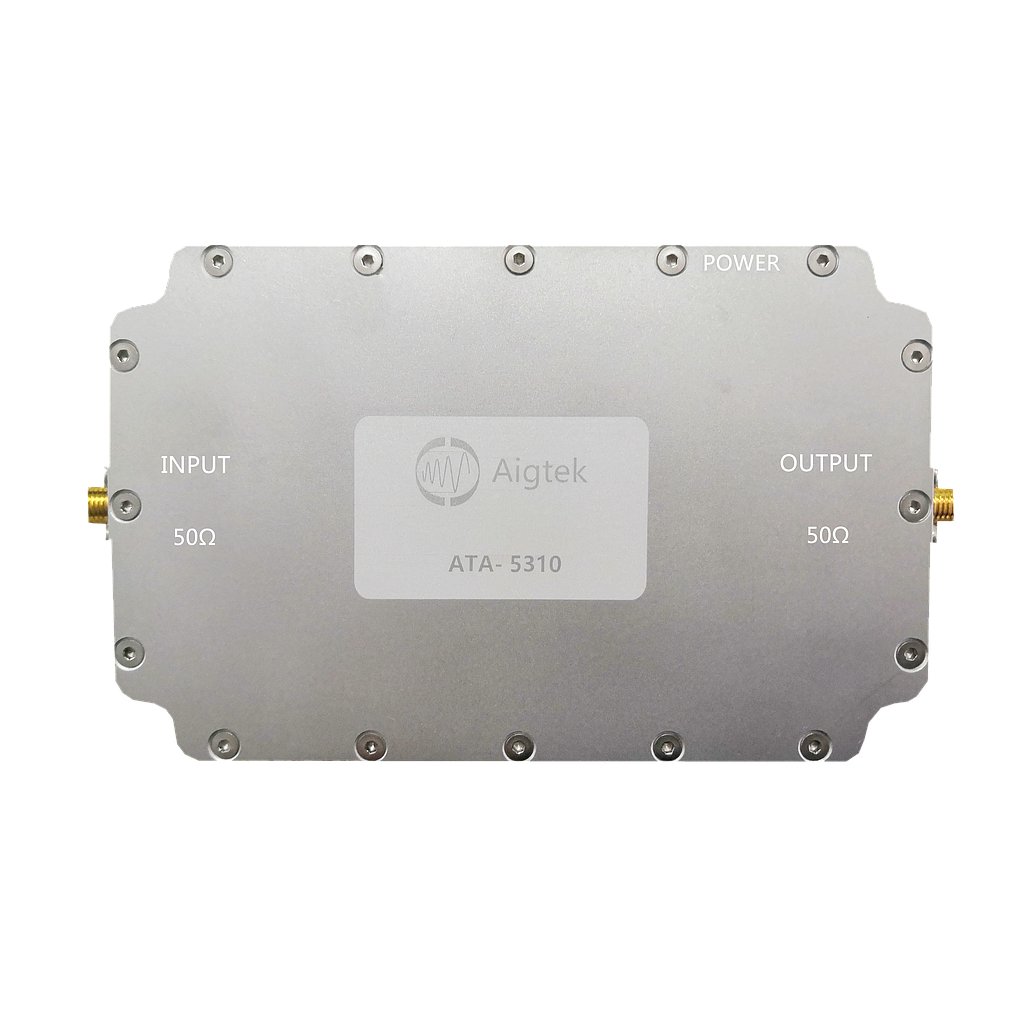

Aigtek ATA-5310 Preamplifier ((-3dB)1kHz~10MHz, 2Vp-p, 46dB)
Manufacturer: Aigtek Model: ATA-5310 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Bandwidth（-3dB）: 1kHz~10MHz
Input resistance: 50Ω
Input conversion Noise voltage: Less than 0.7nV/√Hz （100kHz） 0.5nV/ √Hz typ （10k~1MHz）
Input conversion Noise current: 7pA/ √Hz typ （10kHz)
Maximum output voltage: 2 Vp-p（50Ω）
Output resistance: 50Ω
Voltage gain: 46 dB
Size (W * H * D): 150*75*250mm
