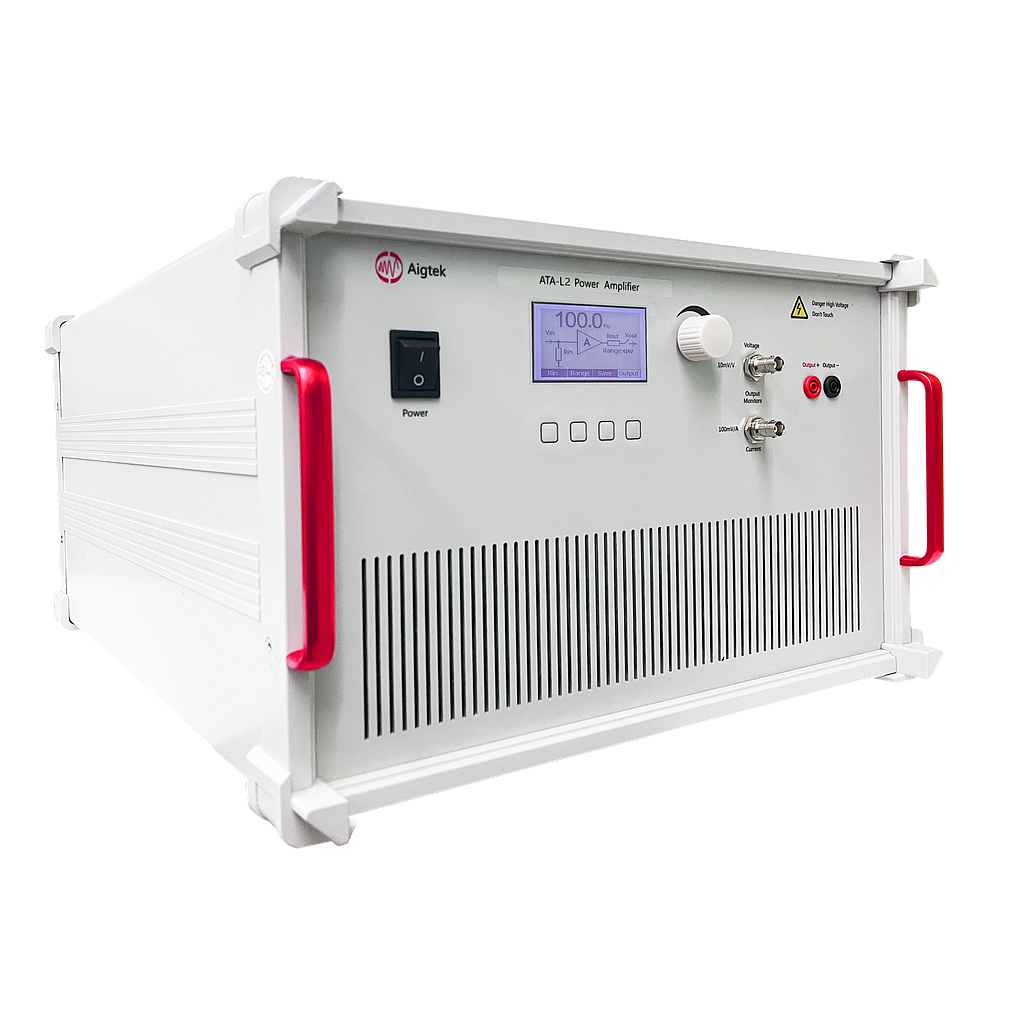

Aigtek ATA-L2 Power Amplifier (200Hz ~ 120kHz, 424 Vrms, 200VA , 1CH)

Bandwidth（-3dB）: 200Hz~120kHz

Maximum output voltage: 424Vrms

Input voltage at full output: 1Vrms（1kHz）

Maximum output power: 200VA

Input resistance: 10kΩ

Current monitor: 100mV/A

Voltage monitor: 10mV/ V

Total harmonic distortion （THD）: ≤1%@1kHz，100Vp-p

Output Connector :4mm Banana socket

Fault lights: Over current

Signal Ground: Floated to the same level as the source

Supply voltage: AC220V±10%，50Hz

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: ≤80%RH，no condensation

Size (W * H * D): 440*290*565mm

Output impedance: 56Ω, 224Ω, 505Ω, 898Ω

Maximum output voltage: 106Vrms, 212Vrms, 318Vrms, 424Vrms

Maximum output current: 1.89Arms, 0.95Arms, 0.63Arms, 0.47Arms
