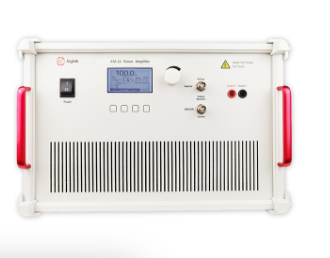

Aigtek ATA-L6 Power Amplifier (200Hz ~ 120kHz, 1012 Vrms, 800VA, 1CH)

Bandwidth(-3dB): 200Hz~120kHz

Maximum output voltage: 1012Vrms

Input voltage at full output: 1Vrms(1kHz)

Maximum output power: 600VA

Input resistance: 10kΩ

Current monitor: 100mV/A

Voltage monitor: 10mV/ V

Total harmonic distortion (THD): ≤1%@1kHz,100Vp-p

Output Connector :4mm Banana socket

Fault lights: Over current

Signal Ground: Floated to the same level as the source

Supply voltage: AC220V±10%,50Hz

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: ≤80%RH,no condensation

Size (W * H * D): 440*290*565mm

Output impedance: 48Ω, 193Ω, 434Ω, 771Ω, 1204Ω, 1707Ω

Maximum output voltage: 170Vrms, 340Vrms, 510Vrms, 680Vrms, 850Vrms, 1012Vrms

Maximumoutput current: 3.54Arms, 1.76Arms, 1.18Arms, 0.88Arms, 0.7Arms, 0.59Arms
