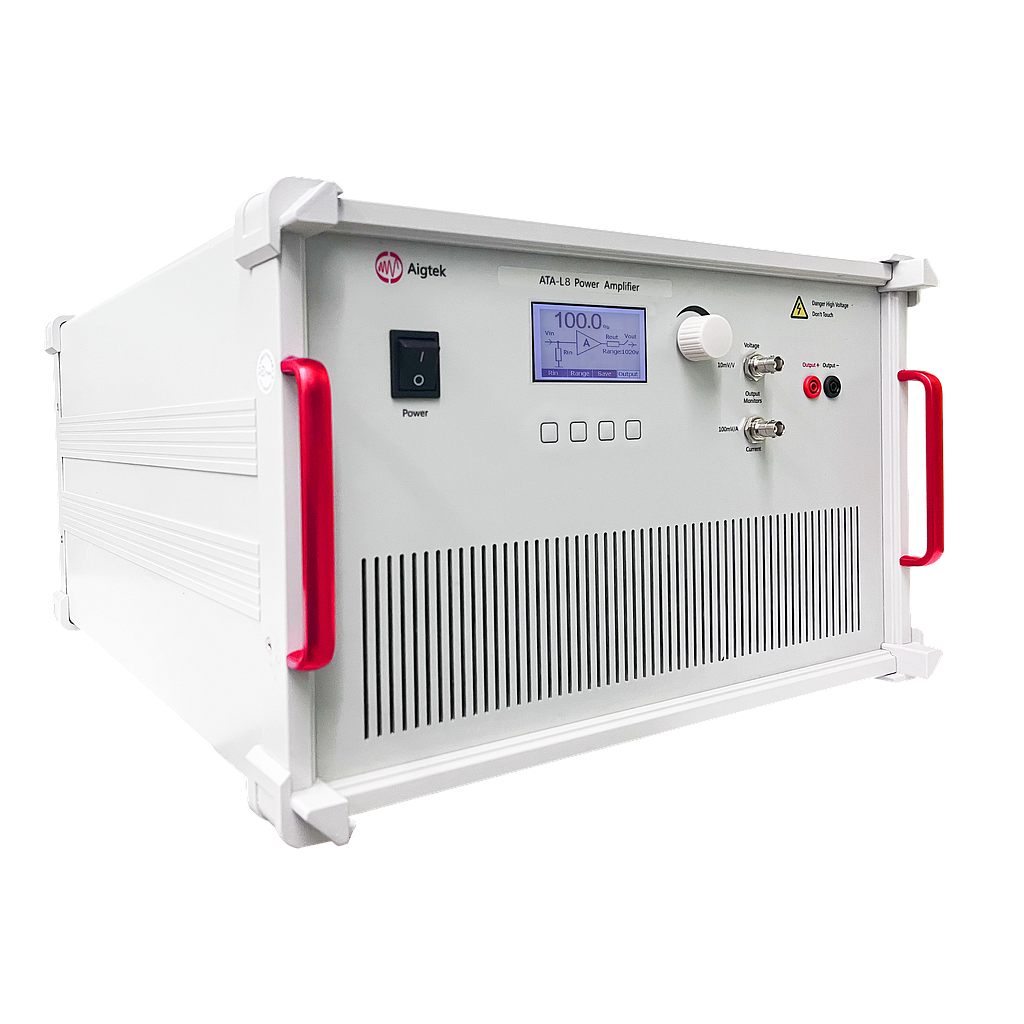

Aigtek ATA-L8 Power Amplifier (200Hz ~ 120kHz, 1020 Vrms, 1000VA, 1CH)

Bandwidth（-3dB）: 200Hz~120kHz

Maximum output voltage: 1020Vrms

Input voltage at full output: 1Vrms（1kHz）

Maximum output power: 1000VA

Input resistance: 10kΩ

Current monitor: 100mV/A

Voltage monitor: 10mV/ V

Total harmonic distortion （THD）: ≤1%@1kHz，100Vp-p

Output Connector :4mm Banana socket

Fault lights: Over current

Signal Ground: Floated to the same level as the source

Supply voltage: AC220V±10%，50Hz

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: ≤80%RH，no condensation

Size (W * H * D): 440*290*565mm

Output impedance: 30Ω, 115Ω, 260Ω, 460Ω, 720Ω, 1040Ω

Maximum output voltage: 170Vrms, 340Vrms, 510Vrms, 680Vrms, 850Vrms, 1020Vrms

Maximumoutput current: 5.67Arms, 2.96Arms, 1.96Arms, 1.48Arms, 1.18Arms, 0.98Arms
