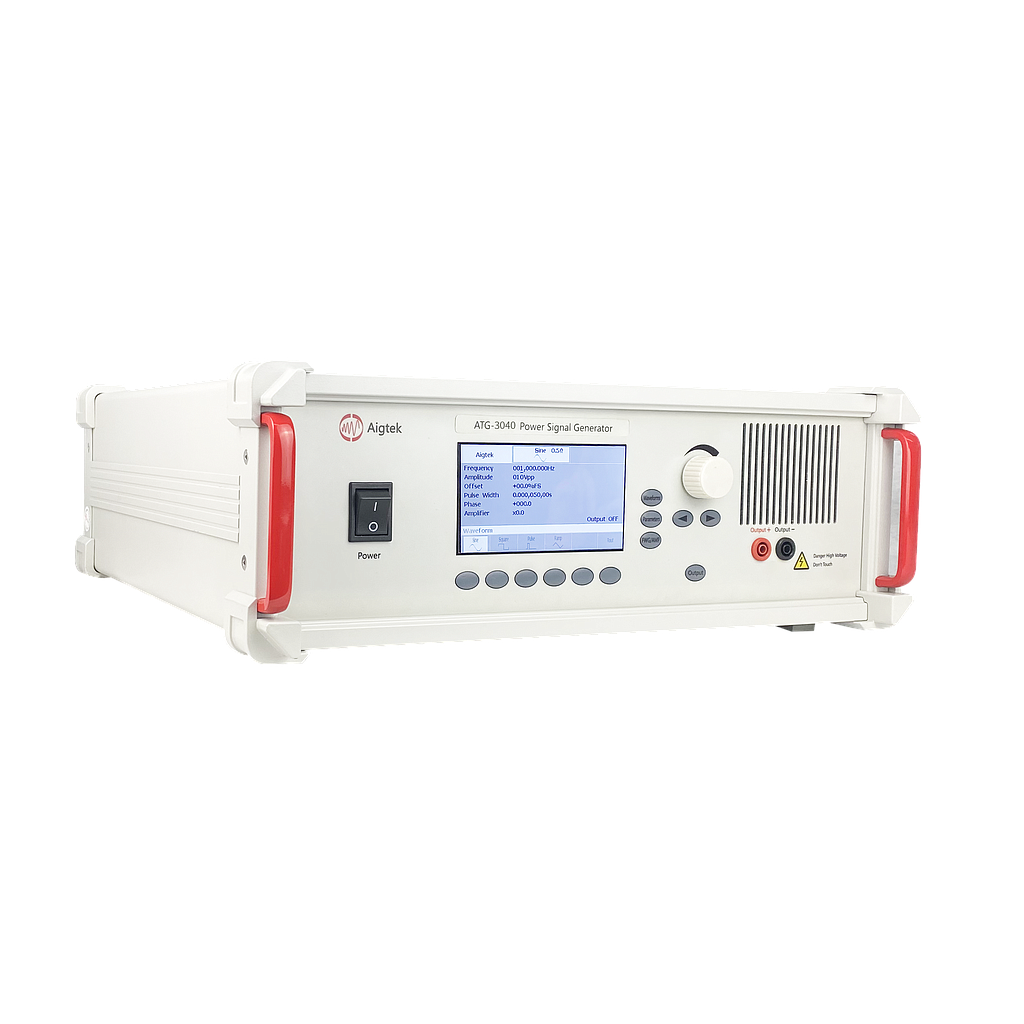

Aigtek ATG-3040 Signal Generator ((-3dB) DC to 100kHz, 90Vp-p(±45Vp), 8Ap, 360Wp, 1CH)

Bandwidth (-3dB): DC~100kHz

Output form: Single-end output

Maximum output voltage: 90Vp-p(±45V)

Maximum output current: 8A

Maximum output power: 360W

Voltage gain: 0~30(0.1step)

Input resistance (Rin): 50Ω / 5kΩ

Input waveform amplitude: 10Vp-pMAX

Output resistance (Rout): 0.1Ω / 50Ω customizable

Slew rate: 50V/μs

Load limit (RL): ≥5.6Ω

Details

datasheet
