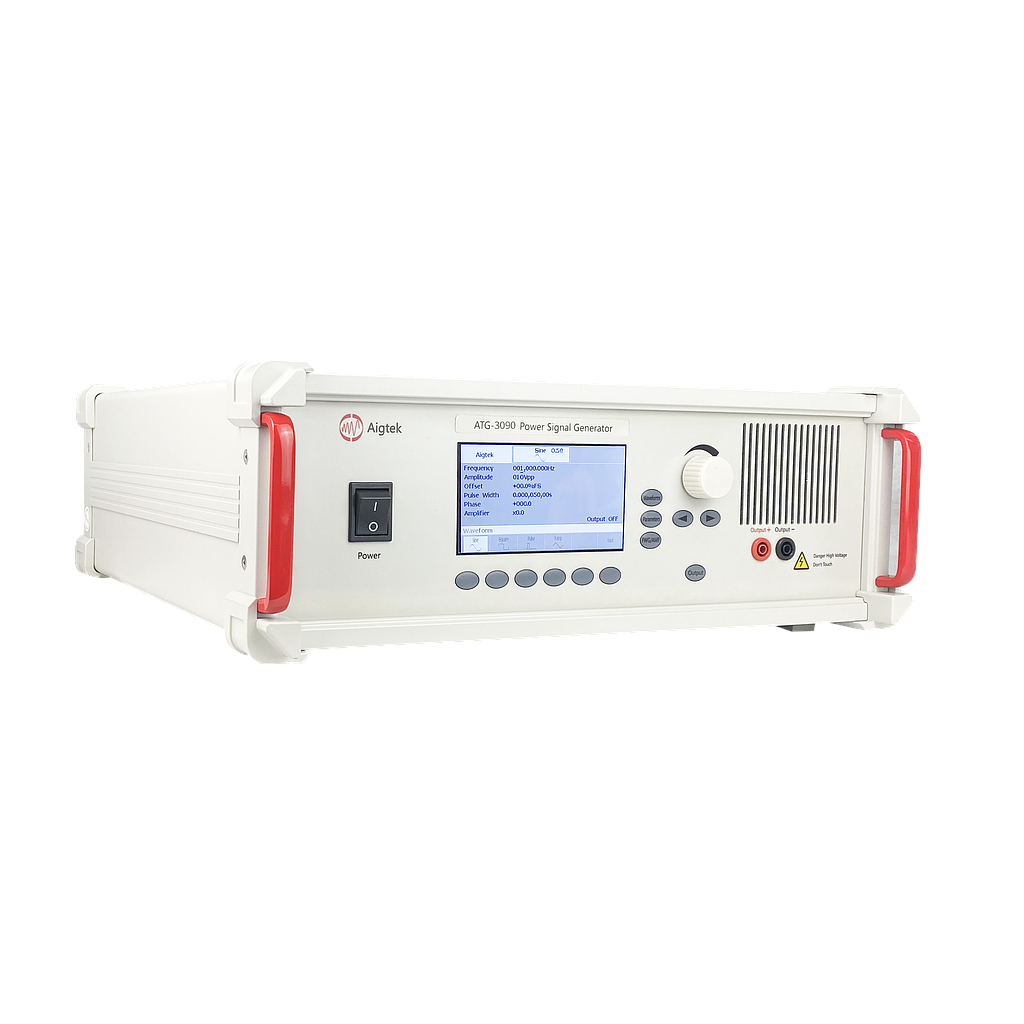

Aigtek ATG-3090 Signal Generator ((-3dB)DC to 100kHz, 90Vp-p(±45Vp), 18Ap, 810Wp, 1CH)

Bandwidth (-3dB): DC~100kHz

Output form: Single-endoutput

Maximum output voltage: 90Vp-p（±45V）

Maximum output current: 18A

Maximum output power: 810W

Voltage gain: 0~30(0.1step)

Input resistance (Rin): 50Ω / 5kΩ

Input waveform amplitude: 10Vp-pMAX

Output resistance (Rout): 0.3Ω/ 50Ω customizable

Slew rate: 50V/μs

Load limit (RL): ≥2.5Ω
