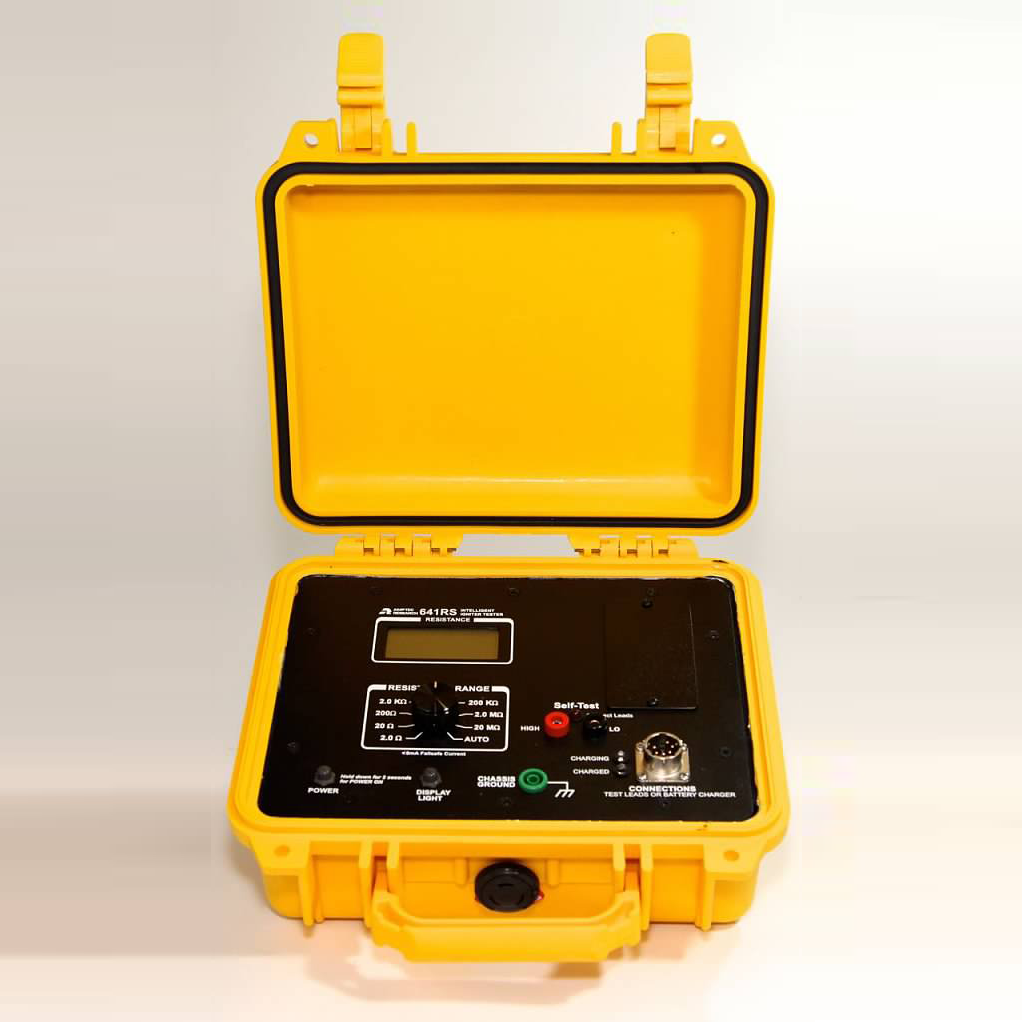

Amptec 641RS Compact Ruggedized Failsafe Igniter Tester with Self-Test Feature (2 Ω,2 MΩ)

Range: 2 Ω

Nominal Current: 5 mA

Failsafe Current: 8 mA

Resolution: 0.1 mΩ

Accuracy: ± .05% of reading & range


Range: 20 Ω

Nominal Current: 5 mA

Failsafe Current: 8 mA

Resolution: 1 mΩ

Accuracy: ± .02% of reading & range


Range: 200 Ω

Nominal Current: 1 mA

Failsafe Current: 1.5 mA

Resolution: 10 mΩ

Accuracy: ± .02% of reading & range


Range: 2 KΩ

Nominal Current: 100 uA

Failsafe Current: 150 uA

Resolution: 0.1 Ω

Accuracy: ± .02% of reading & range


Range: 20 KΩ

Nominal Current: 10 uA

Failsafe Current: 15 uA

Resolution: 1 Ω

Accuracy: ± .02% of reading & range


Range: 200 KΩ

Nominal Current: 1 uA

Failsafe Current: 1.5 uA

Resolution: 10 Ω

Accuracy: ± .05% of reading & range


Range: 2M Ω

Nominal Current: 0.1 uA

Failsafe Current: 0.15 uA

Resolution: 100 Ω

Accuracy: ± 1% of reading, ± 0.2% range


Range: 20 MΩ

Nominal Current: 0.1 uA

Failsafe Current: .015 uA

Resolution: 1 KΩ

Accuracy:± 2% of reading, ± 0.2% range



Display: 4 1/2 digit LED

Terminal: Trident

Temperature Coefficient: ± .002% per 1°C

Operating Temperature Range: 0° to 50° C

Dimensions: 10.62″ x 9.68″ x 4.87″

Weight: 6.5 lbs.

Power: 4 ea rechargeable 5AH NICAD batteries

Max Input Voltage: 250 VDC

Open Circuit: 1.6 VDC

Max Failsafe Current: 8 mA
