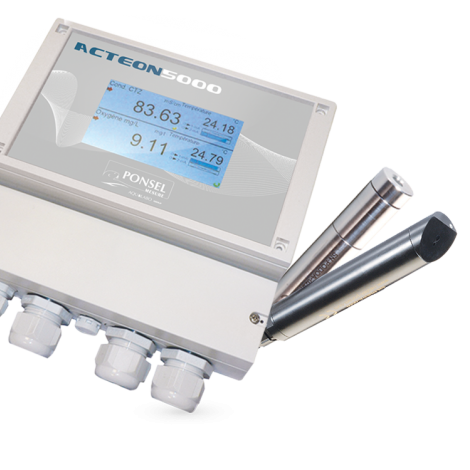

Aqualabo NC-FIX-C-00112 Transmitter Oxygen and Turbidity 7m ACTEON 5000 (0-20mg/L, 0~200%, 0~4000 NTU, 0~4500 mg/L)

Transmitter ACTEON 5000

Software and features

Digital sensor: 2 inputs digital sensor RS485

2 analog input: In mode 0/4-20 mA or 0-10 V

2 relay input: Function of transfer on exit(release) TOR

                      Information of external cleaning system: swing in maintenance mode

2 analog outputs: Choice of 2 parameters programmable according to the connected sensor

                              Programming PID

2 digital outputs /relay: NO/NF customizable

                                      Instruction point: setting of the measuring range

                                      (Hysteresys / activation way) and time of activation,

                                      Command for external cleaning system

                                      Output alarm for defect material sensor

Digital output: Modbus RTU

                        Ethernet TCP IP

Data recording: Internal flash memory

                          Frequency recording: 1-120 mn

                          Recording journal of events, measure sensors.

Atmospheric pressure sensor: To compensate oxygen pression

Characteristics

Display: Backlit graphic LCD touch Screen – Size95x54 mm

Analog outputs: 0/4.00 – 20.00 mA with galvanic isolation

                           Charge max 250 W

Relay outputs: 6 A /250 V

Operating conditions: Temperature : -15°C to + 50 °C

                                    Temperature of storage/transport : -15°C to + 50°C

USB port: Unloading of the recorded data

Power/ Electrical protections: 100-240 V AC/DC 50-60 Hz

                                                - Option 9-28 V DC/DC

                                                 - Electrical protection: consistent EN61010-1 :2010

Housing

Dimensions (LxHxP): 213 x 185 x 84 mm

Material: Grey ABS

Protection rating: IP 65

Front: Antireflective polyester

Containing:

- 1  ACTEON 5000 transmitter digital bi-sensors,

- 1 digital NTU sensor with 7 m cable,

- 1 digital OPTOD sensor with 7 m cable,

- 1 Operating instructions on CD.

For specific range please check the attachment below!

Details

Datasheet

Datasheet Conductivity digital sensor C4E_2


Datasheet Conductivity digital sensor C4E


Datasheet Oxygen Optical digital sensor OPTOD_2


Datasheet Oxygen Optical digital sensor OPTOD


Datasheet Turbidity digital sensor NTU


Datasheet Turbidity digital sensor NTU


Manual

User Manual Conductivity digital sensor C4E


User Manual Oxygen Optical digital sensor OPTOD


User Manual Transmitter digital physicochemistry ACTEON 5000


User Manual Transmitter digital physicochemistry ACTEON 5000_Calibration procedure STACSENSE


User Manual Turbidity digital sensor NTU_Wiring guidelines


User Manual Turbidity digital sensor NTU
