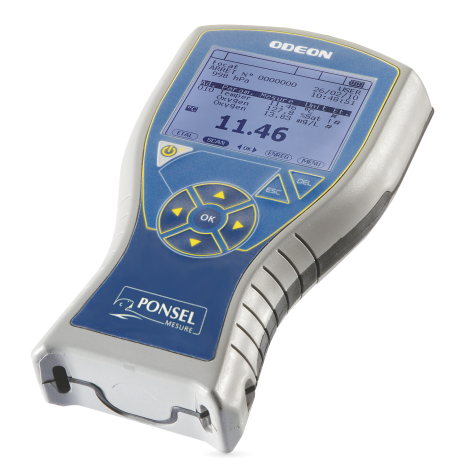

Aqualabo NC-POR-C-00117 ODEON® Open One OPTOD® Oxygen Meter set Probe 7 m cable (0~20mg/L, 0~200% SAT)

SPECIFICATIONS

Range: 0,00 – 20,00 mg/L, 0 – 200% SAT

Memory: 8 MB (up to more than 100,000 records)

Power supply: 4 x 1.5V AA

 Options: Rechargeable Battery, Power. External 12 V

Battery life: 145-190 hours depending on the configuration

Communication: USB

Housing: PC/ABS

Weight: 400 g

Dimensions : 196.5 x 121 x 46 mm

Protection: IP 67

Operating temperature, humidity: - 25 to + 50 ° C, 0-70%

Storage temperature, humidity: - 25 to + 65 ° C, 0-80%

Display: LCD 4 «240 x 320 pixel display with adjustable backlighting

Connectors: 1 connector: ODEON OPEN ONE; 2 connectors: ODEON OPEN X

ACCESSORIES AND OPTIONS

Transfer and data analysis software: Odeon Viewer

Rechargeable Version with charger 220 V

External Power Cable 12V

Y cable for 2 digital sensors on one input

Sensor coupling Accessories

Reels up to 20m and 100 m

Enhanced suitcase equipped with a 12V battery

Cable length 1 m/3 m/7 m/15 m (other lengths available on request)

125 mL Standardized calibration solutions

For specific range please check the attachment below!

Details

Datasheet

Datasheet Portable meter digital physicochemistry ODEON_2


Datasheet Portable meter digital physicochemistry ODEON


Datasheet Oxygen Optical digital sensor OPTOD


Datasheet Oxygen Optical digital sensor OPTOD_2


Manual

User Manual Oxygen Optical digital sensor OPTOD


User Manual Portable meter digital physicochemistry ODEON
