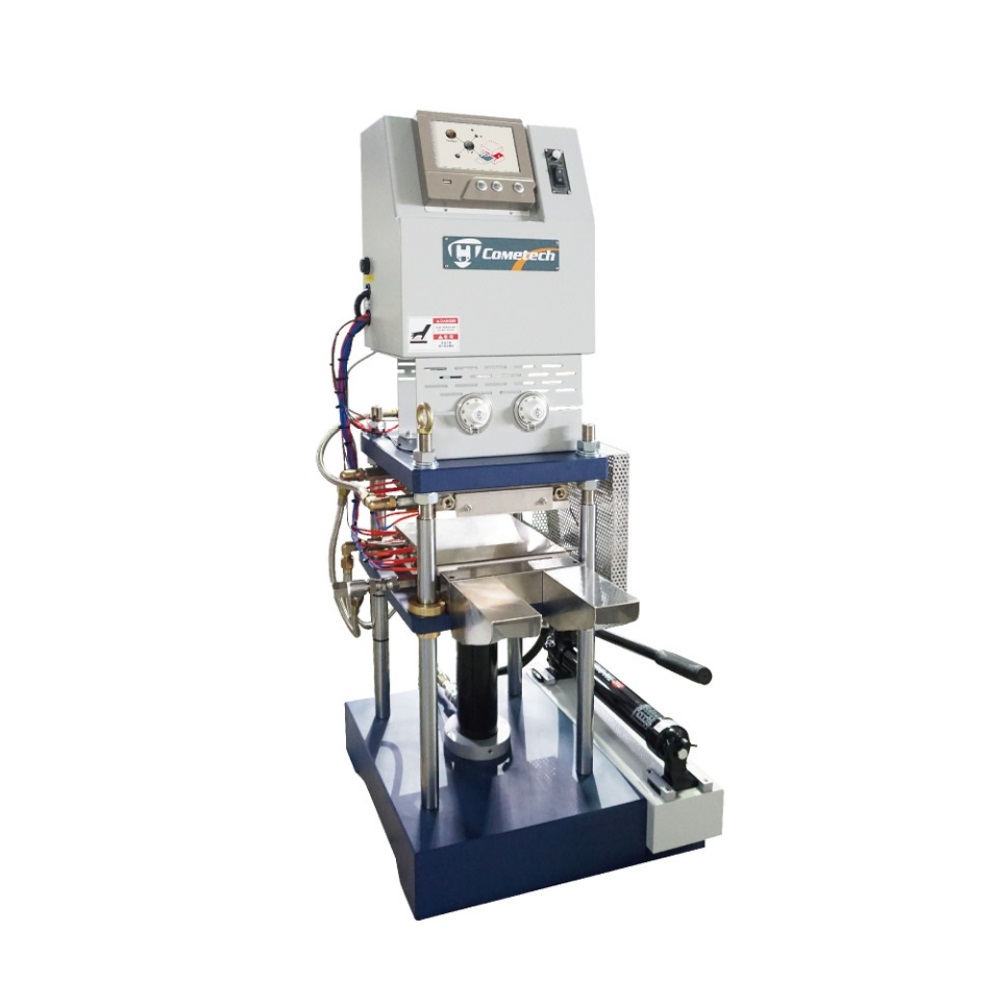

Cometech QC-667C Manual Thermo Molding Machine (10, 20, 30, 50 Tons)

Pressure (Tons): 10, 20, 30, 50 (Tons), or specified capacity

                           (5-100% of the max. capacity is the suggested test range)

Units: Temperature: °C, °F

          Area: m2, cm2, mm2, ft2, in2

          Force : kgf, gf, tonf(long), tonf(short), lbf, ozf, kN, N, tonf(SI)

          Pressure: bar, kgf/cm2, KPa, MPa, mm-Aq(4°C), psi

Temperature: Room temperature — 300°C

Heating time: 50°C - 150°C takes 18mins

Cooling method (Optional):
- A. water cooling, takes within 10 minutes to cool down frorn 150°C - 60°C(depends on heating plate size) upper and lower heating plate cool down simultaneously; distribute heat evenly embedded cooling water pipe system; minimize safety concerns during operation allows disassembling of water cooling pipe; convenient for cleaning and future maintenance

- B. independent water chiller, the average cooling speed is 15°C per minutes.

Size of heating plate: 10, 20,30 Tons: 25x25cm

                                  50Tons: 30x30cm

Distance between heating plates: 60-100mm (adjustable)

Piston stroke: Max. 80 mm

Accessory: A set of mold for flat sheet size 200x200x2mm

                  A set of mold for flat sheet size 250x250x2mm

Control: 7" touchscreen

Display: Instant force, temperature and diagram

Power: Single phase, 220V/50Hz or 60Hz

Dimension: 60x65x140cm (WxDxH)

Weight: 10 tons: about 200kg

             20 tons: about 250kg

             30 tons: about 300kg

             50 tons: about 350kg
