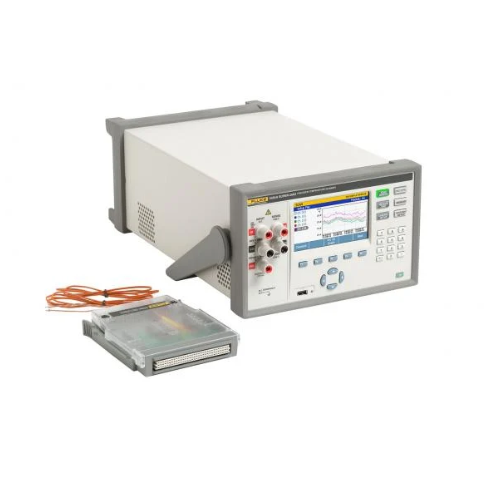

FLUKE 1586A/1DS Super-DAQ Precision Temperature Scanner

Mains voltage:

+ 100 V setting: 90 V to 110 V

+ 120 V setting: 108 V to 132 V

+ 220 V setting: 198 V to 242 V

+ 240 V setting: 216 V to 264 V

Frequency: 47 Hz to 440 Hz

Power consumption: 36 VA peak (24 W average)

Environment temperature:

+ Operating: 0°C to 50°C

+ Full accuracy: 18°C to 28°C

+ Storage: −20°C to 70°C

+ Warm-up: 1 hour to full accuracy specifications

Relative humidity (non-condensing):

+ Operating: 0°C to 30°C <80%; 30°C to 50°C <50%

+ Storage: −20°C to 70°C <95%

Altitude

+ Operating: 2,000 m

+ Storage: 12,000 m

Vibration and shock: Complies with MIL-PRF-28800F Class 3

Channel capacity

+ Total analog channels: 45

+ Voltage/resistance channels: 41

+ Current channels: 5

+ Digital I/O: 8 bits

+ Totalizer: 1

+ Alarm outputs: 6

+ Trigger input: 1

Input protection: 50 V all functions, terminals, and ranges

Math channels

+ Number of channels: 20

+ Operations: Sum, difference, multiply, divide, polynomial, power, square root, reciprocal, exponential, logarithm, absolute value, average, maximum, minimum

Triggers: interval, external (trigger input), alarm, remote (bus), manual, automated test

Memory

+ Scan data RAM: 75,000 readings with timestamp

+ Data/setup flash memory: 20 MB

USB host port

+ Connector type: Type A

+ Function: Memory

+ File system: FAT32

+ Memory capacity: 32 GB

USB Device Port

+ Connector type: Type B

+ Class: Instrument

+ Function: Control and data transfer

+ Command protocol: SCPI

LAN

+ Function: Control and data transfer

+ Network protocols: Ethernet 10/100, TCP/IP

+ Command protocol: SCPI

RS-232

+ Connector: D-sub 9 pin (DE-9)

+ Baud rates: 1200, 2400, 4800, 9600, 19200, 38400

+ Function: Temperature source control output

(HxWxD): 150 mm x 245 mm x 385 mm

Weight: 6 kg (typical configuration)
