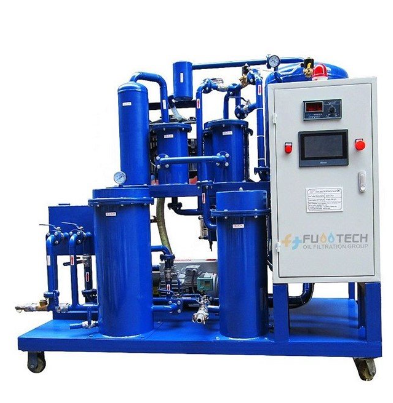

Fuootech COP-10 Standard Type Vacuum Cooking Oil Purifier (600 L/H)

Flow rate: 600 L/H

Vacuum degree: -0.06~-0.095 Mpa

Working pressure: ≤0.4 Mpa

Temperature Control Range: 0 ~ 100 ℃

Operation Temperature: 50 ~ 70 ℃

Demulsification: New oil≤15min, running oil≤30min

Power supply: 380 VAC, 50 Hz, 3 Phase (or as per required)

Working noise: ≤ 65 ~ 90 DB(A)

Electric heating power: 30 KW

Total electric power: 32.5 KW

Inlet (outlet) caliber: Ф25 mm

Weight: 450 Kg

Dimension (LxWxH): 1500x1000x1500 mm

Oil Result after Purification

Moisture (water content): ≤100 PPM (remove 100% of free water and 99%of dissolved/emulsified water)

Gas Content: ≤0.01%

Suspended Particles (Filtration precision): ≤ 5 micron

Demulsification New oil≤15min, running oil≤30min

Cleanliness; ≤NAS 1638-Grade 5
