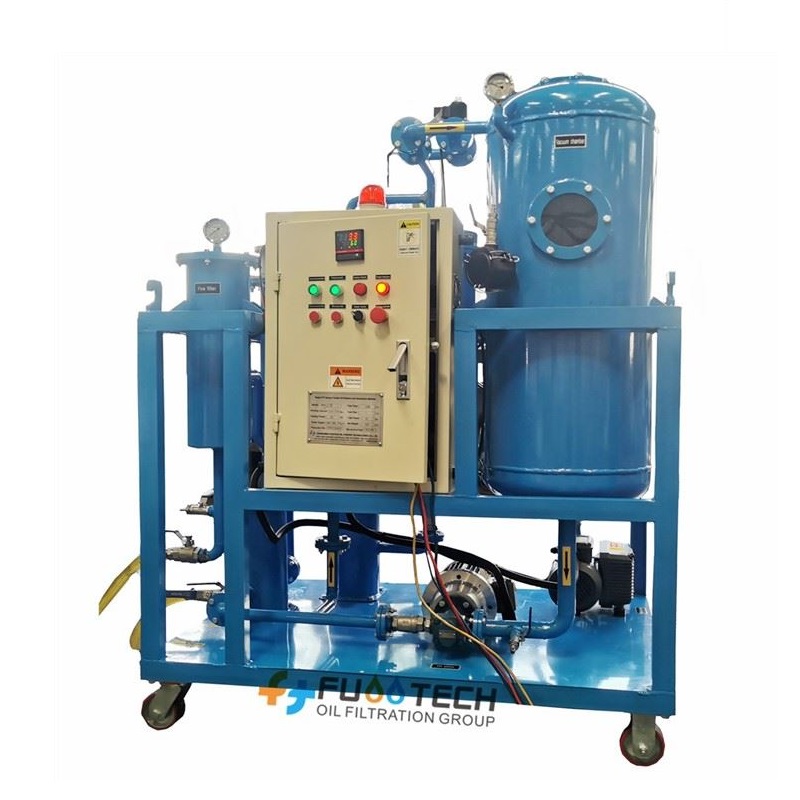

Fuootech FTY-300 Turbine Oil Dehydration and Purification Plant (18000 L/h)

Flow rate: 18000 L/hr

Working Vacuum Degree: -0.06 ~ -0.095 MPa

Working Pressure:≤ 0.4 MPa (4 bar max) MPa

Temperature Range: 10 ~ 80 ℃

Power Supply: 380 VAC, 3 Phase, 50 Hz (or as per requirement)

Heating power: 180 kW

Total power: 200 kW

Inlet/outlet caliber: Ф65 mm

Noise level: ≤70 ~ 80 db

Continuous working time: ≥ 100 Hours

Weight: 1550 kg

Dimension (without Trailer): 1950x1630x2090 mm

Oil Result after Filtration

Moisture (Water Content) ≤100PPM

Gas Content ≤0.1%

Filtering Accuracy ≤1micron

Demulsification Value ≤12min (GB/F 7305)

Cleanliness ≤NAS1638 Class 6
