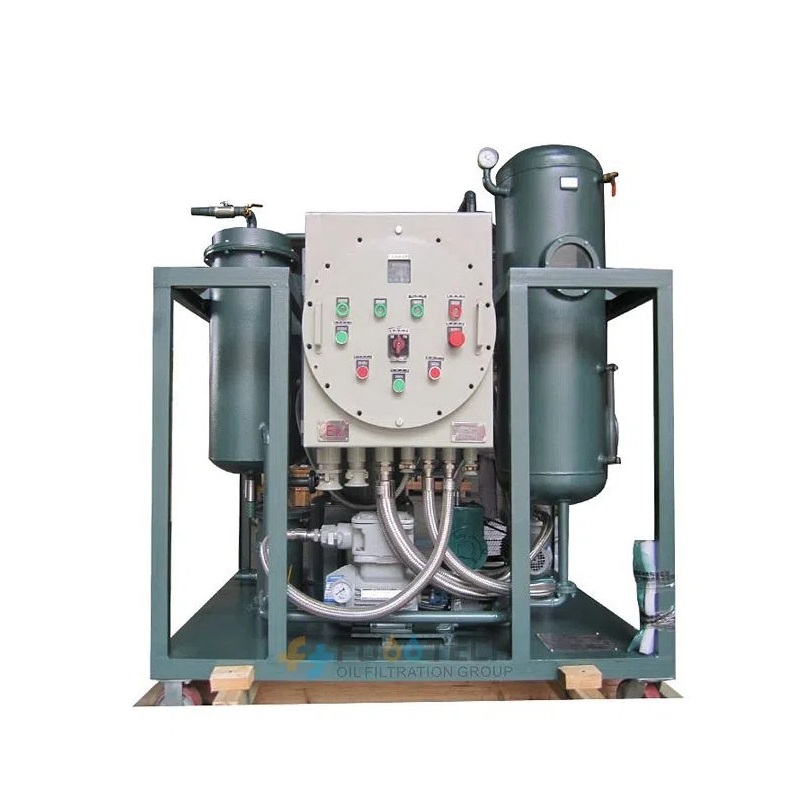

Fuootech FTY-EX-200 Explosion-proof Type Vacuum Turbine Oil Purifier (12000 L/h)

Flow rate: 12000 L/hr

Working Vacuum Degree: -0.06 ~ -0.095 MPa

Working Pressure: ≤ 0.3 MPa

Temperature Range: 20 ~ 80℃

Power Supply: 380 VAC, 3 Phase, 50 Hz (or as per requirement)

Heating power: 72 kW

Total power: 81 kW

Inlet/outlet caliber: Ф50 mm

Weight: 1200 kg

Dimension (LxWxH): 1750x1450x1950 mm

Oil Result after Purification

Water Content: ≤ 80 PPM

Air/Gas Content: ≤0.1%

Filtering Precision: ≤ 3 micron

Demulsification Value: ≤12 min (GB/F 7305)

Cleanliness: ≤NAS 1638 Grade 5
