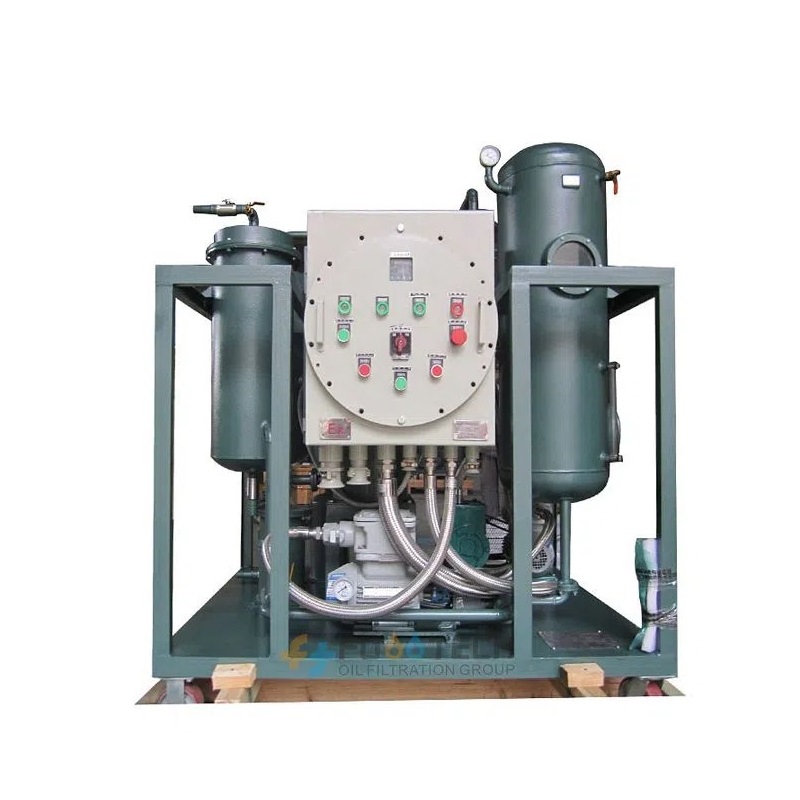

Fuootech FTY-EX-300 Explosion-proof Type Vacuum Turbine Oil Purifier (18000 L/h)
Manufacturer: Fuootech Model: FTY-EX-300 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Flow rate: 18000 L/hr
Working Vacuum Degree: -0.06 ~ -0.095 MPa
Working Pressure: ≤ 0.3 MPa
Temperature Range: 20 ~ 80℃
Power Supply: 380 VAC, 3 Phase, 50 Hz (or as per requirement)
Heating power: 84 kW
Total power: 97 kW
Inlet/outlet caliber: Ф65 mm
Weight: 1550 kg
Dimension(LxWxH): 1950x1630x2090 mm
Oil Result after Purification
Water Content: ≤ 80 PPM
Air/Gas Content: ≤0.1%
Filtering Precision: ≤ 3 micron
Demulsification Value: ≤12 min (GB/F 7305)
Cleanliness: ≤NAS 1638 Grade 5
