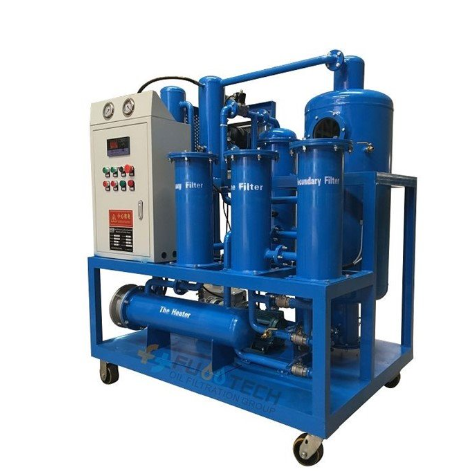

Fuootech LOP-50 Vacuum Lubricating Oil Purifier (3000 L/m)

Flow rate: 3000 L/min

Vacuum degree: -0.06~-0.095 Mpa

Working pressure: ≤0.4 Mpa

Temperature Control Range: 0 ~ 100℃

Operation temperature: 50~70 ℃

Demulsification: New oil ≤ 15min, running oil ≤ 30min

Power supply: 380 VAC, 50 Hz, 3 Phase (or as per required)

Working noise: ≤ 65 ~ 90 DB(A)

Electric heating power: 30 KW

Total electric power: 32.6 KW

Inlet (outlet) caliber: Ф32 mm

Weight: 750 Kg

Dimension (L × W × H): 1600x1150x1700 mm

Oil Result after purification

Moisture (water content): ≤100 PPM (remove 100% of free water and 99% of dissolved/emulsified water)

Gas Content: ≤0.01%

Suspended Particles (Filtration precision): ≤ 5 micron

Demulsification New oil ≤ 15min, running oil ≤30min

Cleanliness: ≤NAS 1638-Grade 5
