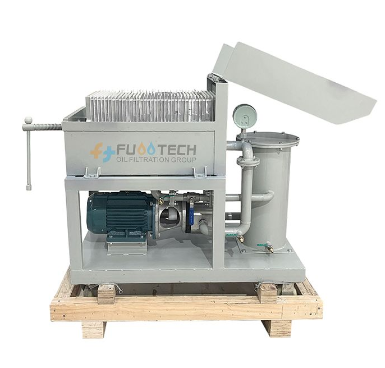

Fuootech PL-30 Portable Press Oil Filter Machine (1800 L/H)

Flow Rate: 1800 L/H

Working Pressure: 0 - 0.5 MPa

Filtering Area: 0.3 ≥m^2

Board Frame Size: 180×180 mm

Press Manner: Screw Manually

Filter Frame Number: 11

Filter Plate Number: 12

Gear Oil Pump: Flow: >30 L/min

Safe Pressure: 0.6 Mpa

Power supply: 380V, 3Phase, 50hz (or as per user’s option)

Viscosity: ≤46 (mm^2/S)

Motor: Power: 1.1 kW

Rotation Speed: 1400 r/min

Filtering precision: ≤1 ~ 5 µm

Noise: ≤ 55 dB(A)

Filter paper size: 185*190 mm

Diameter: Inlet: 32 mm

outlet: 32 mm

Dimension Length: 700 mm

Width: 300 mm

Height: 720 mm

Weight: 76 KGS
