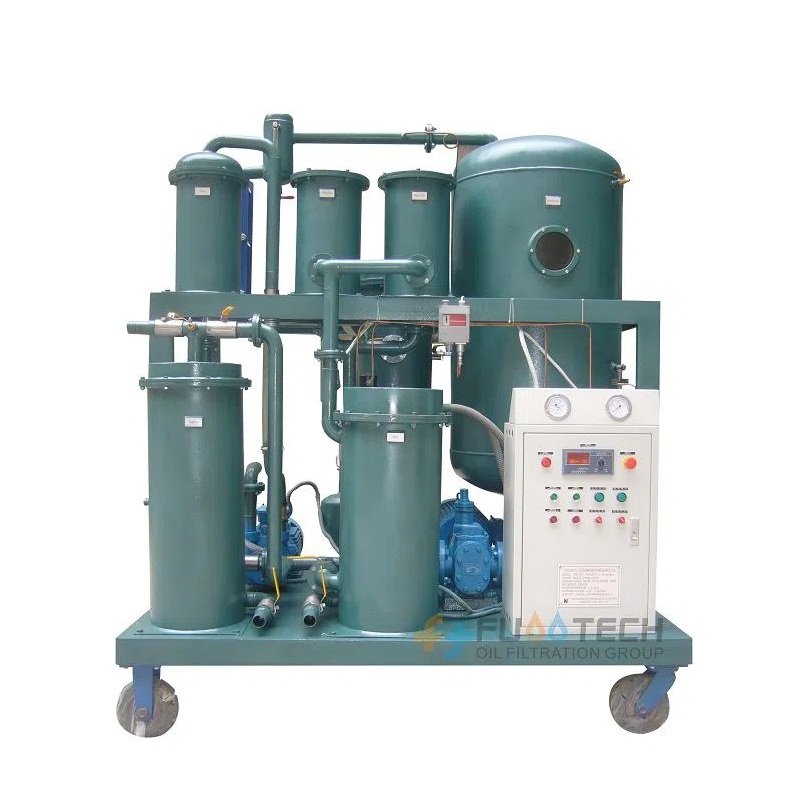

Fuootech TYD-10 Lubricating Oil Water Separation and Filtration System (600 L/H)

Flow rate: 600 L/H

Vacuum degree: -0.06 ~ - 0.095 Mpa

Working pressure: ≤0.4 Mpa

Temperature Control Range: 0 ~ 100 ℃

Operation Temperature: 50 ~ 70 ℃

Demulsification: New oil ≤ 15min, running oil ≤ 30min

Power supply: 380 VAC, 50 Hz, 3 Phase (or as per required)

Working noise: ≤ 65 ~ 90 DB(A)

Electric heating power: 18 KW

Total electric power: 19.3 KW

Inlet (outlet) caliber: Ф25 mm

Dimension(L*W*H): 1500*1000*1500 mm

Weight: 450 Kg

Oil Result after Purification

Moisture (Water Content) ≤ 100 PPM

Gas/air Content ≤0.1%

Filtering Accuracy ≤ 3 micron

De-emulsification value: ≤15 minutes

Cleanliness: ≤NAS 1638 grade 6
