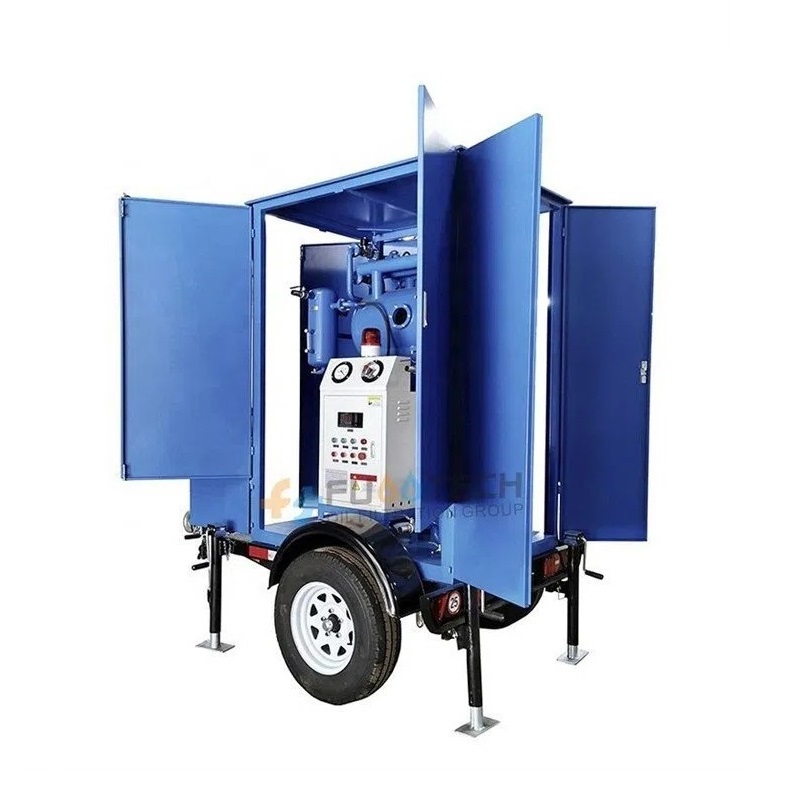

Fuootech ZY-M-300 Mobile Type Single-stage Vacuum Transformer Oil Purifie (18000 LPH)

Flow rate: 18000 LPH

Working vacuum: -0.06 ~ -0.095MPa

Working pressure: ≤0.5 MPa

Working without Trouble: ≥4000 H

Continuous Working: ≥150 H

Temperature range: 20 ~ 80 ℃

Power supply: 380V, 3 phase, 50 Hz (or as per your requirements)

Working noise: ≤ 61 ~ 85 dB(A)

Heating power: 90 KW

Total power: 98 KW

Inlet/outlet caliber: φ65 mm

Gross Weight: Machine Part: 1200KGS, Trailer Parts: 1500 KGS

Dimension L×W×H: Machine Part: 1950×1300×2130 mm, Trailer Parts: 3010×1920×1120 mm

Oil Results after Filtration

Moisture (Water Content): ≤ 3 ~ 5 PPM

Gas Content: ≤0.1% (Vol)

Impurities Degree (Filtration precision): ≤ 3 micron (no free carbon)

Breakdown Voltage (Dielectric): ≥65 ~ 70 KV

Flash Point: ≥130℃

Cleanliness: ≤NAS 1638 Grade 6
