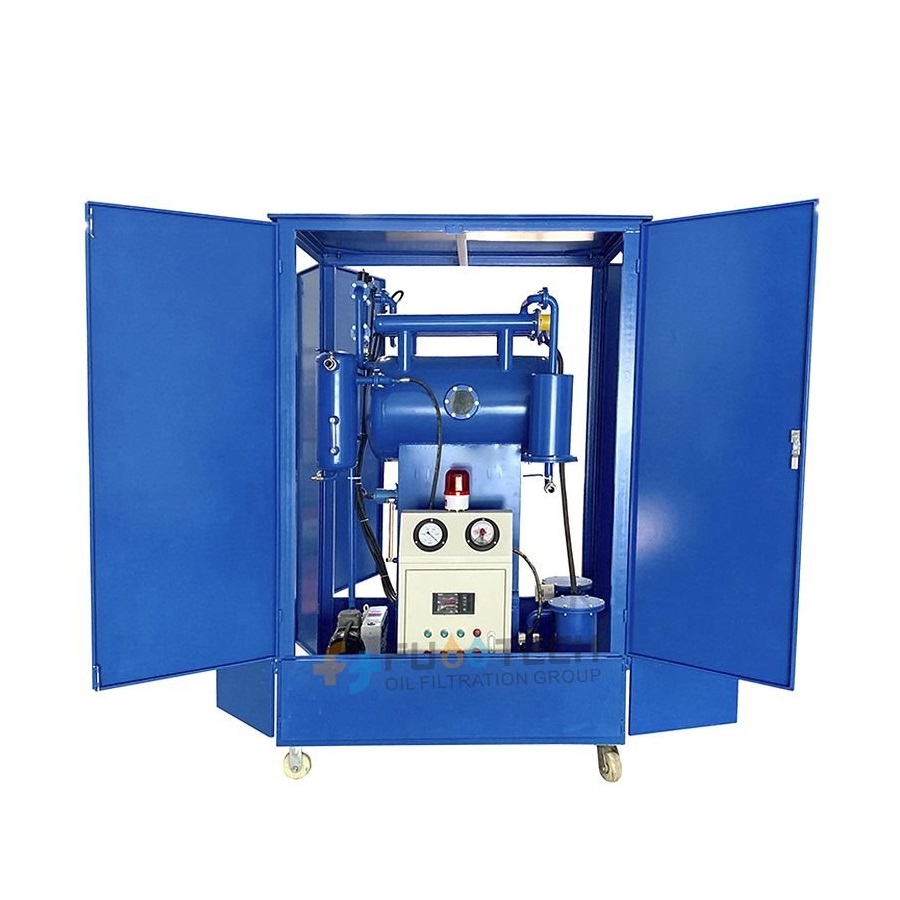

Fuootech ZY-W-20 Fully Enclosed Single-stage Vacuum Transformer Oil Purifier (1200 LPH)
Manufacturer: Fuootech Model: ZY-W-20 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Flow rate: 1200 LPH
Working vacuum: -0.06 ~ -0.095 MPa
Working pressure: ≤0.4 MPa
Working without Trouble: ≥4000 H
Continuous Working: ≥150 H
Temperature range: 20 ~ 80 ℃
Power supply: 380V, 3 phase, 50 Hz (or as per your requirements)
Working noise: ≤ 61 ~ 85 dB(A)
Heating power: 13 KW
Total power: 14.5 KW
Inlet/outlet caliber: φ25 mm
Gross Weight: 250 KGS
Dimension L×W×H: 1110 × 880 × 1430 mm
Oil Results after Oil Purifier System
Moisture (Water Content): ≤ 5 PPM
Gas Content: ≤0.1% (Vol)
Impurities Degree (Filtration precision): ≤ 5 micron (no free carbon)
Breakdown Voltage (Dielectric): ≥65 ~ 70 KV
Flash Point: ≥130℃
Cleanliness: ≤NAS 1638 Grade 6
