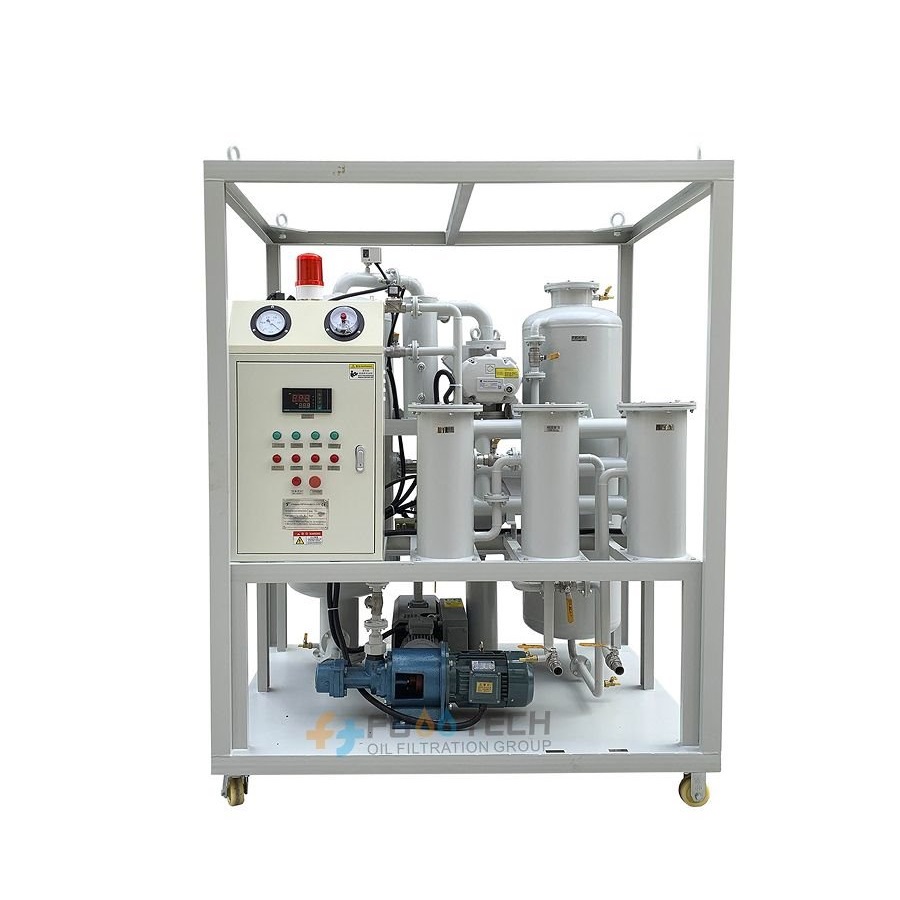

Fuootech ZYD-I-200 Double-stage Vacuum Transformer Oil Regeneration System (12000 L/h)
Manufacturer: Fuootech Model: ZYD-I-200 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Flow rate: 12000 L/h
Working vacuum: -0.08~-0.099 MPa
Vacuum pressure: ≤0.3 MPa
Temperature range: 20~80 ℃
Power: 3ph 380V 50Hz(or as need)
Working noise: 80 dB(A)
Heating power: 75 kW
Total power: 86.5 kW
Oil Inlet/Outlet: φ50 mm
Weight: 1800 Kg
Overall(LxWxH): 1600x1100x1800 mm
Breakdown Voltage: ≥75 kV
Moisture content: ≤3 PPM
Gas content: ≤0.1 %
Impurity size: ≤1 (no free carbon) micron
IFT: ≥40 dynes/cm
Acid value: ≤ 0.03 mgKOH/g
Dielectric loss factors: ≤0.001 tgδ(90℃)
