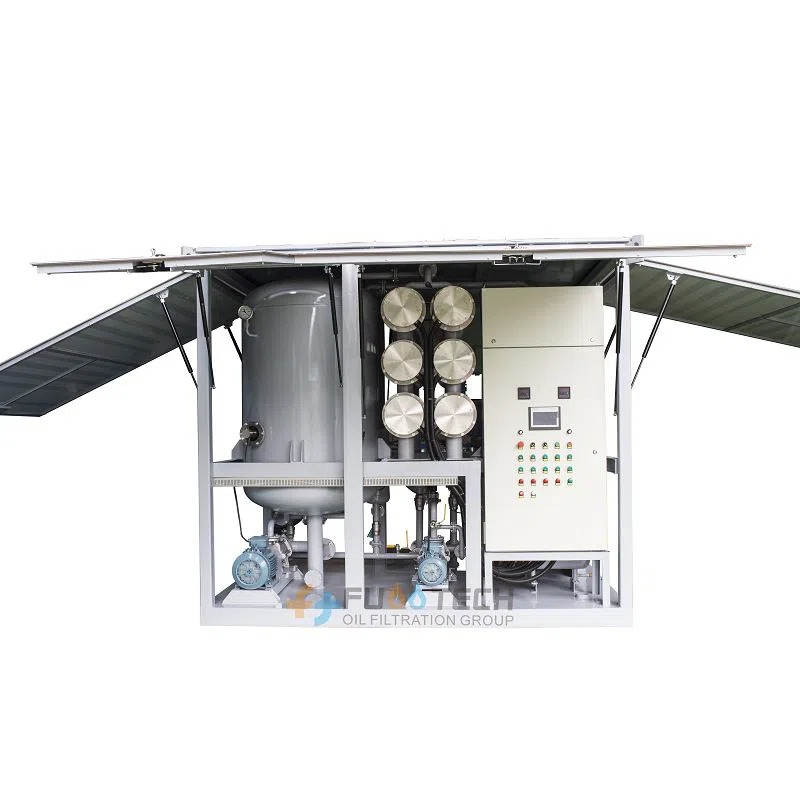

Fuootech ZYD-U-200 Ultra-High Voltage Vacuum Transformer Oil Treatment Plant (12000 L/H)
Manufacturer: Fuootech Model: ZYD-U-200 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Flow Rate: 12000 L/H
Ultimate Vacuum Degree: ≤ 5 Pa
Working Vacuum Degree: ≤ 30 Pa
Working Discharge Pressure: ≤ 0.5 MPa
Temperature Control Range: 20 ~ 80℃
Operation Temperature: 40 ~ 65℃
Power Supply: 380V, 50Hz, 3 phases (or as per your requirements)
Ambient Temperature: -25 ~ 55℃
Working Noise: 65 ~ 90 dB(A)
Heating Power(adjusted available): 132 KW
Total Power: 150 KW
Inlet/Outlet: Φ50 mm
Weight: 2200 Kg
Dimension: 2850×2050×2600 mm
Oil Result after Filtration
Moisture (Water Content) ≤ 3 PPM
Gas Content ≤0.01% (Vol)
Impurities Degree (Filtration precision) ≤ 0.5 micron (no free carbon)
Breakdown Voltage (Dielectric Strength) ≥75 KV
Flash Point ≥145℃
Granularity 5 ~ 50μm (in 100ml oil sample) ≤ 500 Nos
Cleanliness ≤NAS 1638 Grade 6
