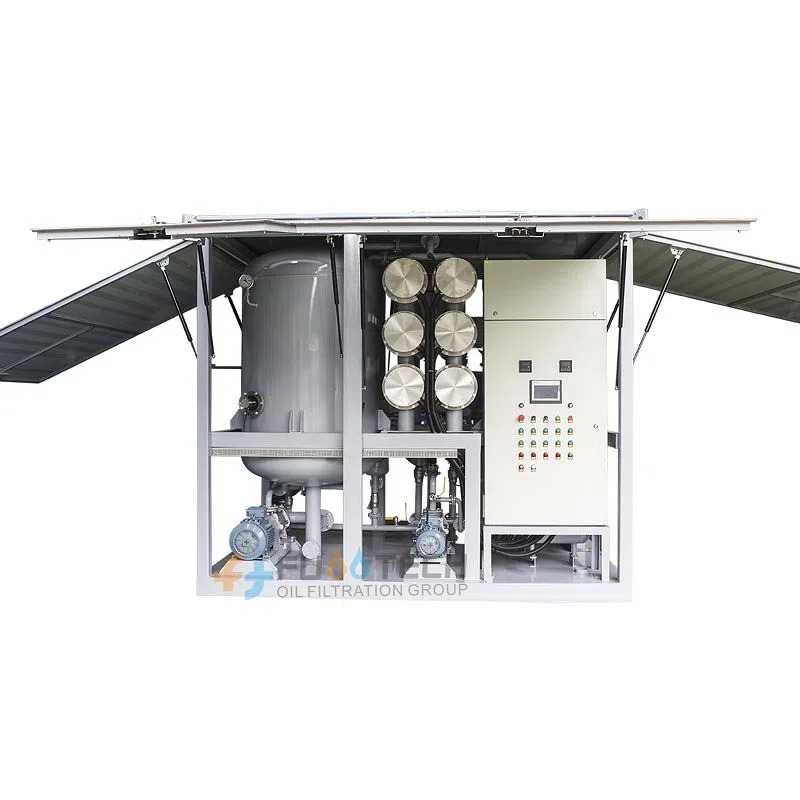

Fuootech ZYD-W-30 Fully Enclosed Double-stage Vacuum Transformer Oil Purifier (1800 L / H)
Manufacturer: Fuootech Model: ZYD-W-30 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Flow Rate: 1800 L/H
Working Vacuum Degree: -0.08 ~ -0.099 MPa
Working Discharge Pressure: ≤ 0.3 MPa
Temperature Control Range: 20 ~ 80 ℃
Operation Temperature: 40 ~ 70 ℃ (65℃ is best)
Power Supply: 380V, 50Hz, 3 phases (or as per your requirements)
Working hours without Trouble: 4000 Hour
Continuous Working Hours: 150 Hour
Ambient Temperature: -25 ~ 55℃
Working Noise: 65 ~ 90 dB(A)
Heating Power (adjusted available): 30 KW
Total Power: 35.5 KW
Inlet/Outlet: φ25 mm
Gross Weight: 600 KGS
Dimension L×W×H: 1450×1050×1860 mm
Oil Results after Purification by ZYD-W Series
Parameter Non-treated Oil / After Purification
Moisture (Water Content): ≤ 100 ppm/ ≤ 5 PPM
Gas Content: 8%/ ≤0.03% (Vol)
Impurities Degree (Filter precision): 2%/ ≤ 0.5 micron (no free carbon)
Breakdown Voltage (Dielectric Strength): 25 kV/ ≥70 KV at 2.5 mm gap
Flash Point: 70/ ≥ 145℃
Cleanliness: NAS 1638 Grade 10/ ≤NAS 1638 Grade 6
