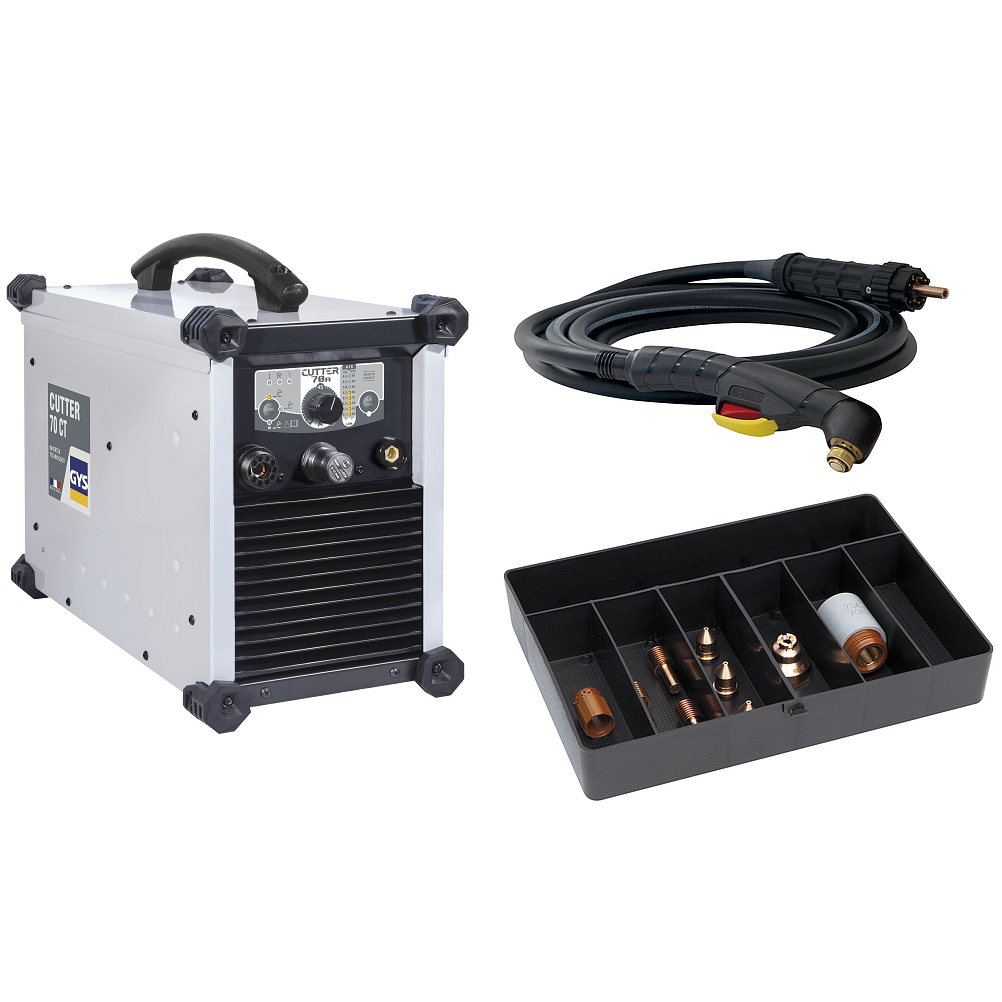

GYS CUTTER 70CT M2 PACK Plasma Cutter Set (3ph; 400V; 20-70A; Manual torch 6m)

STANDARD DELIVERY

1. CUTTER 70 CT

The CUTTER 70 CT is a 70 A plasma cutter with a cutting capacity of 35 mm thick on a multitude of materials. The HF-free arcing system preserves and increases the lifetime of consumables. Designed to be used in difficult environments, it has very robust mechanics and a user friendly control panel. It is prewired for use on automatic cutting tables.

MAXIMUM PRODUCTIVITY

- Faster cutting speed using oxygas.

- Cuts all types of steel (mild, stainless, tempered, HLE), aluminium, copper, etc.

- Optimised cooling using the ventilation corridor that helps isolate the electronic components from the dust.

- Replacement of consumables is fast & easy for maximum productivity.

- Duty cycle 70 A at 60 % (40°C)

HIGH-PERFORMANCE TORCH

- Premium torch TECMO® (leading supplier in Europe).

- Premium cutting quality : the torch is air cooled offering a great arc stability for all types of work.

- Consumables compatible with Hypertherm®.

- Designed to be shock and heat resistant.

- Quick connect/disconnection of the torch, no tools required for transport or maintenance.

- Easy to use trigger mechanism for added comfort.

EFFECTIVE IN EVERY WORKPLACE

- User friendly interface :

   + 3 working modes : Cutting / Mesh / locked

   + manual setting of the air pressure (4.1 < 6.5 bars) using front LED Indicator.

- HF-free ignition to prevent disturbances that could interfere with nearby electronic equipment.

- Compatible with CNC kit for automatic cutting tables.

DESIGNED TO LAST

- Reinforced metal case & non slip rubber pads.

- IP 23 protection rated.

- Compact and Portable

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 16 A

Normal current output: 20-70 A

Duty cycle (environment temp. 40°C)

- Cutting:

    @ 60%: 70 A / 108 V

    @ 100%: 55 A / 102 V

- Gouging:

    Imax: 70 A @ 50%

    @ 60%: 60 A / 124 V

    @ 100%: 45 A / 118 V

No-load voltage: 320 V

Recommended air flow rate: 270 L/min

Recommended air pressure: 5 > 9 bar

Protection class: IP 23

Power generator: > 16 kW

Dimensions (L x w x h): 52 x 40 x 26 cm

Weight: 22 kg

Standard IEC 60974-1/10 A

Recommended manual cutter: MT-70

2. Connections 8mm, 10mm

3. Earth cable 4 m, 10mm²

4. Manual torch MT-70, 6 m- 037502

5. Consumables kit- 037540 (bao gồm: 1x diffuser, 3xelectrode, 3xtips, 1xnozzle, 1xdeflector)
