GYS CUTTER 70 CT Plasma Cutter (400V, 3ph, 20-70A, Automatic torch 12m)

The CUTTER 70 CT is a 70 A plasma cutter with a cutting capacity of 35 mm thick on a multitude of materials.

Designed to be used in difficult environments, it has a very robust mechanics and a user friendly control panel.

Cuts steels (mild, stainless steel, hardened, HLE), aluminium, copper...

- 3 operating modes:

- Cutting solid sheets

- Cutting wire mesh

- Trigger locking Gouging with maximum shrinkage

- Allows important metal removal (specific skid and nozzle in options)

- Premium torch TECMO® (leading supplier in Europe).

- HF-free priming avoids interference that can damage nearby electronic equipment

- It is pre-wired for use on automatic cutting tables.

Comes with an ergonomic and high-performance 6 m manual torch

- 400 V three phase power supply.

Specifications:

Power Supply: 400 V, 3 ph, 50/60 Hz

Current: 16 A

Cutting current range: 20-70 A

Duty cycle (environment temp. 40°C)

- Cutting:

    Imax: -

    @ 60%: 70 A / 108 V

    @ 100%: 55 A / 102 V

- Gouging:

    Imax: 70 A @ 50%

    @ 60%: 60 A / 124 V

    @ 100%: 45 A / 118 V

No-load voltage: 320 V

Recommended air flow rate: 270 L/min

Recommended air pressure: 5 > 7 bar

Protection class: IP 23

Recommended generator: > 16 kW

Dimensions (L x w x h): 52 x 40 x 26 cm

Weight: 22 kg

Standard IEC 60974-1/10 A

Recommended manual cutter: MT-70

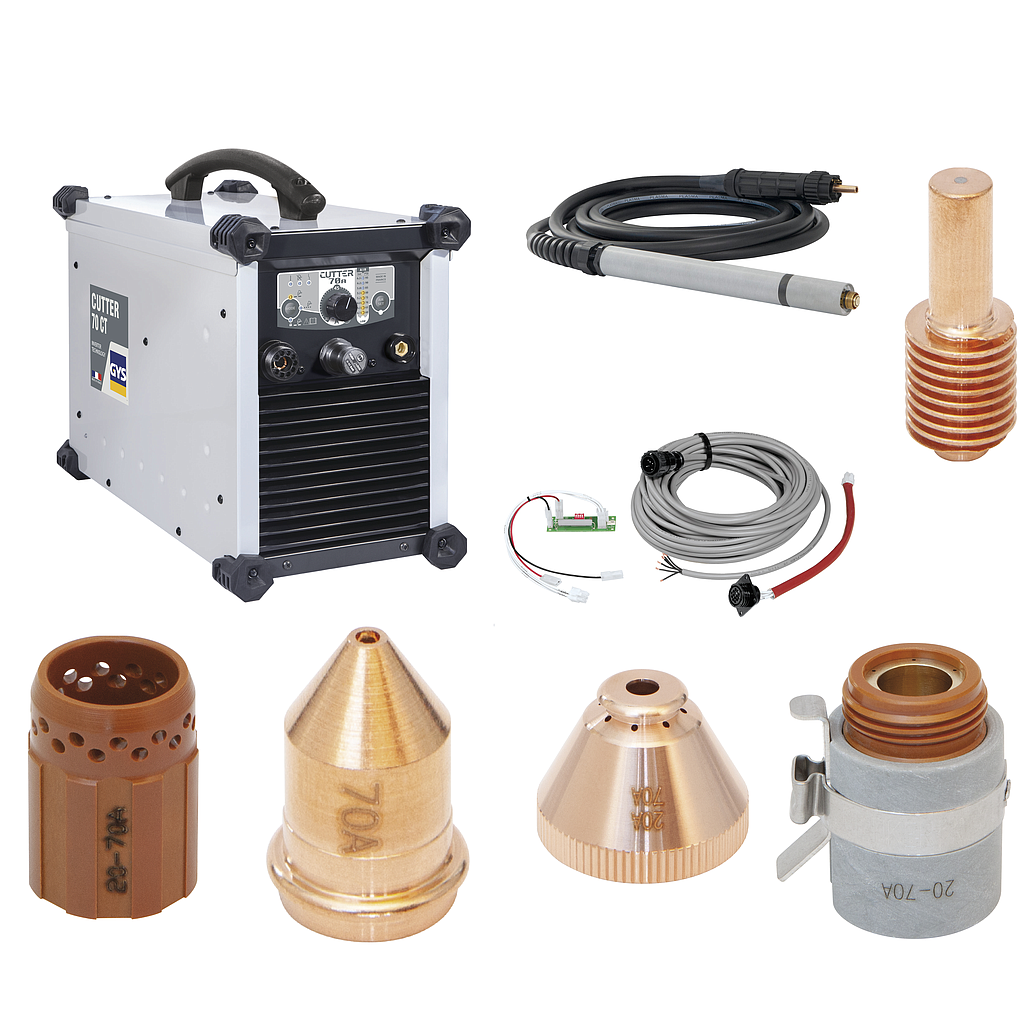

Included accessories:

Connections 8mm, 10mm

Earth cable 4 m, 10mm²

Automatic torch AT-70, 12 m- 037533

CNC kit Analog 039988

1x diffuser

5x electrode

5x tips

1x nozzle

1x deflector
