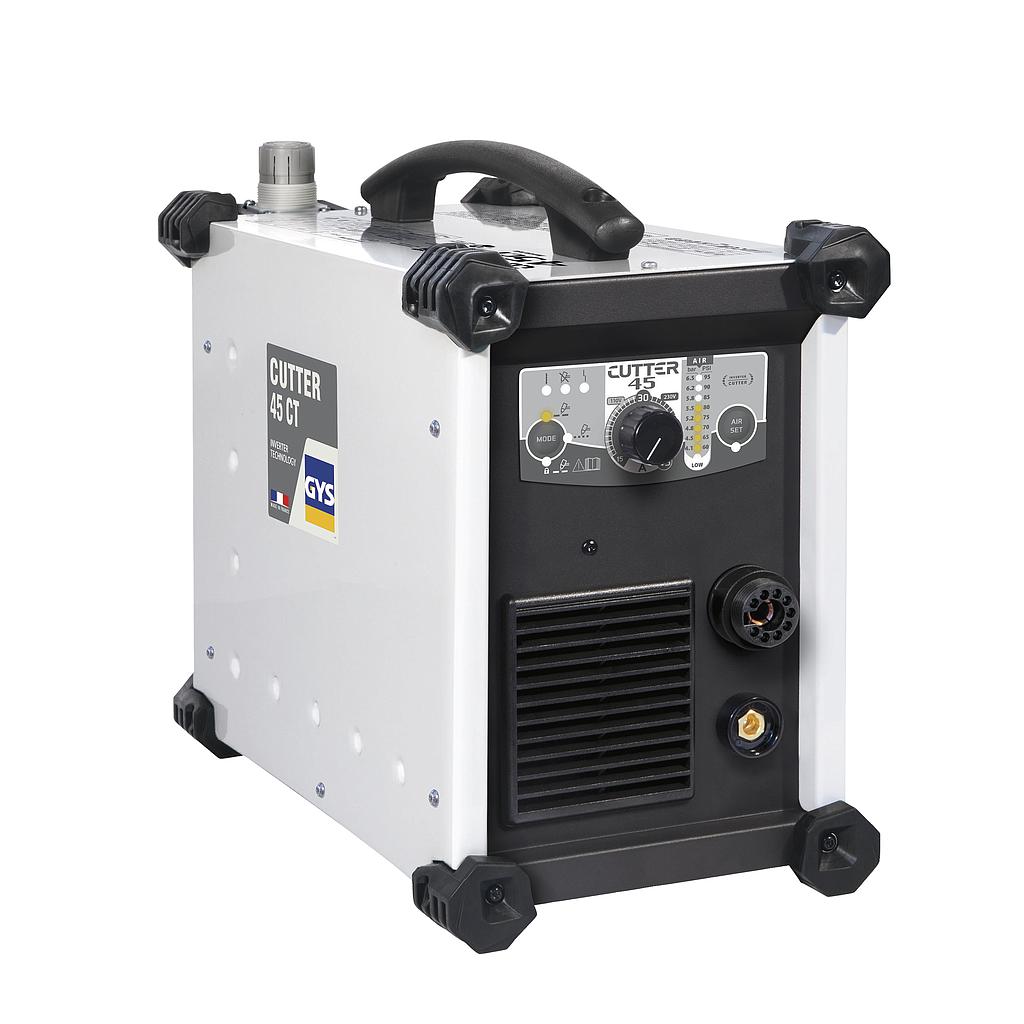

The professional-grade plasma cutters, the CUTTER 45 CT (single phase) and 70 CT (three phase) can cut metal up to a thickness of 35 mm. The CNC interface and the automatic, AT-70, industrial torch enable a completely mechanised operation
■ Easy-to-use control panel with a single potentiometer for adjusting the cutting intensity.
■ Three working modes: Cutting, trigger-lock cutting and cutting of perforated sheets.
■ Pre-wired for use on automatic cutting table (optional CNC-1
■ No HF arc ignition to avoid electromagnetic interference.
■ Manual air pressure adjustment (4.1 < 6.5 bar) with front bar graph.
■ MT-70 premium torch designed to withstand impact and heat.
Power Supply: 230 V, 1 ph, 50/60 Hz
Current: 16 A
Cutting current range: 15-45 A
Duty cycle (environment temp. 40°C):
Imax: 45 A @ 50%
@ 60%: 41 A / 96.4 V
@ 100%: 32 A / 92.8 V
No load voltage: 320 V
Recommended air flow rate: 115 L/min
Recommended air pressure: 5 > 7 bar
Protection class: IP 23
Recommended generator: > 10.5 kW
Dimensions (L x w x h): 48 x 37 x 23 cm
Weight: 15 kg
Standard IEC: 60974-1/10 A
Recommended manual torch: MT-70 or TPT 40
Included accessories: Earth cable 2m
