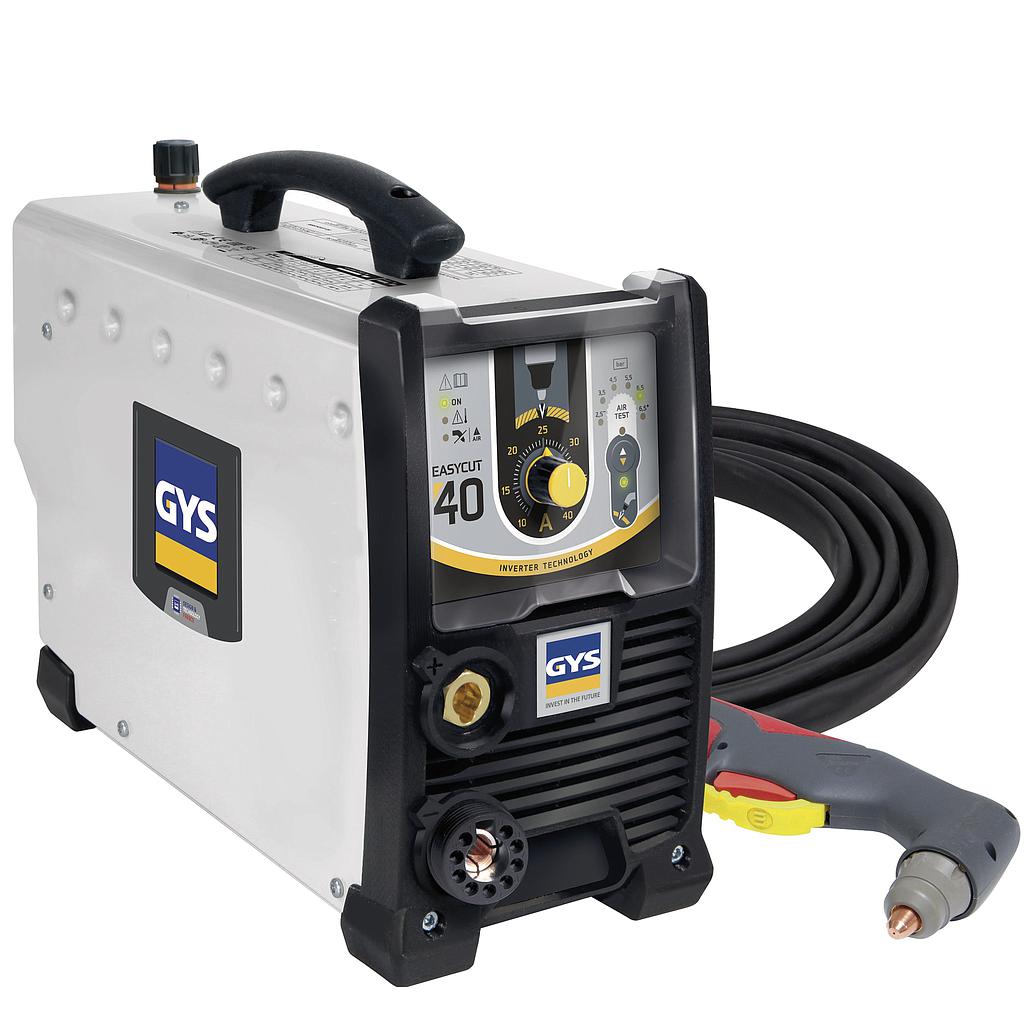

GYS EASYCUT 40 Plasma Cutter (230V, 1ph, 10-40A, Torch 4m)

The ultra-compact EASYCUT 25 and 40 plasma cutters are ideal for easily cutting all types of metal up to 20 mm thick. With a power rating of up to 40 A, they excel at low-current precision cutting. Ideal for the workshop, they offer true portability without sacrificing cutting performance.

■ Compact and lightweight, they provide excellent mobility.

■ Easy-to-use control panel with a single potentiometer for adjusting the cutting intensity.

■ No HF arc ignition to avoid electromagnetic interference.

■ Manual air pressure adjustment (2.5 < 6.5 bar) with front bar graph.

■ Equipped with a 4 m detachable torch with trigger safety device

Specifications

Power Supply: 230 V, 1 ph, 50/60 Hz

Fuse: 32 A

Cutting current range: 10-40 A

Duty cycle (environment temp. 40°C)

    Imax 40 A / 96 V

    @ 60% 10 A / 84 V

    @ 100% -

No load voltage: 440 V

Recommended air flow rate: 115 L/min

Recommended air pressure: 2.5 > 6.5 bar

Protection class: IP 21

Dimensions (L x w x h): 42 x 15 x 30 cm

Weight; 8 kg

Standard IEC 60974-1/10 A

Equipped torch: TPT TPT 40 - 4 m

Included accessories: Torch TOPARC TPT 40, 4 m + Earth cable 2 m
