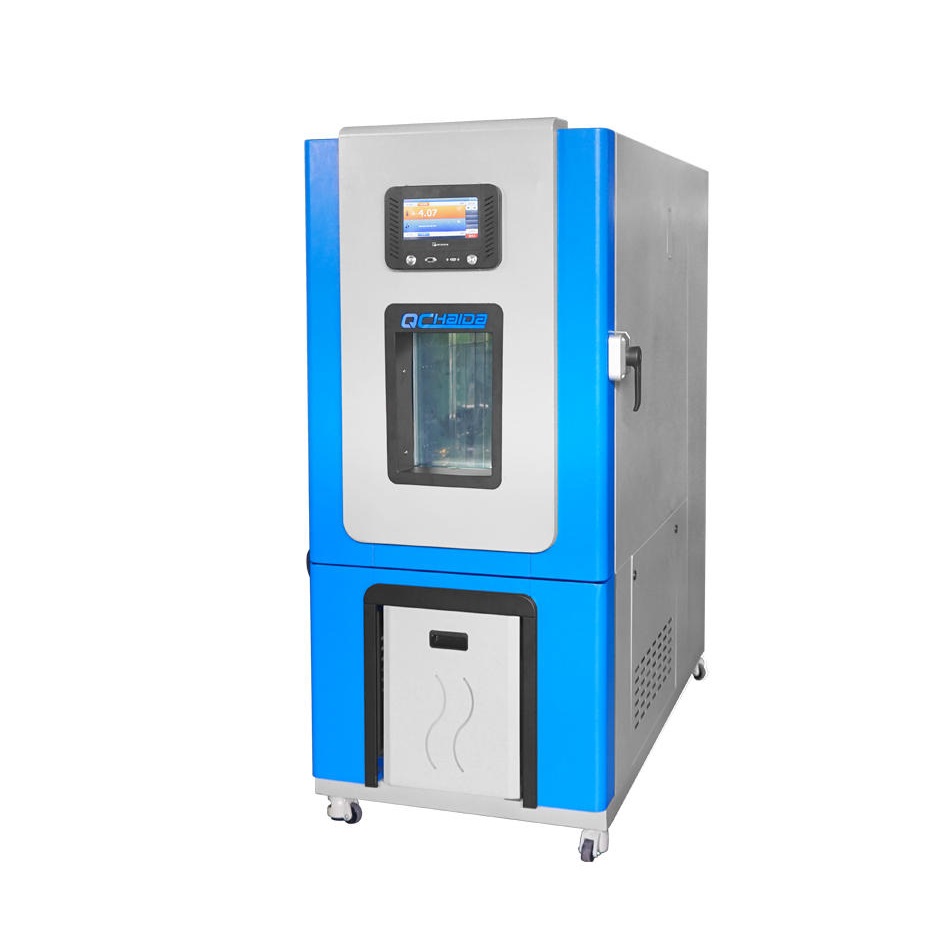

HAIDA HD-E702-150 Humidity Test Chambers
Manufacturer: HAIDA Model: HD-E702-150 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Internal dimension (W*D*H): 500*500*600mm
External dimension (W*D*H): 700*1280*1480mm
Temperature range: -70~+150℃
Temperature fluctuation: ±0.5℃
Temperature uniformity: 2℃
Humidity range: 20~98%RH (Refer Image below)
Humidity fluctuation: ±2.5%RH
Humidity uniformity: 3%RH
Cooling speed: 1℃/min in average (without loading)
Heating speed: 3℃/min in average (without loading)
Internal chamber material: SUS#304 stainless steel, mirror finished
External chamber material: Stainless steel
Cooling method: Air cooling
Controller: LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test
Insulation material: 50mm high density rigid Polyurethane foam
Heater: Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor: France Tecumseh compressor x 2sets
Lighting: Heat resistance
Temperature sensor: PT-100 dry and wet bulb sensor
Observation window: Tempered glass
Testing hole: Diameter 50mm, for cable routing
Sample tray: SUS#304 stainless steel, 2pcs
Safety protection device
Protection for leakage
Over-temperature
Compressor overvoltage and overload
Heater short circuit
Water shortage
