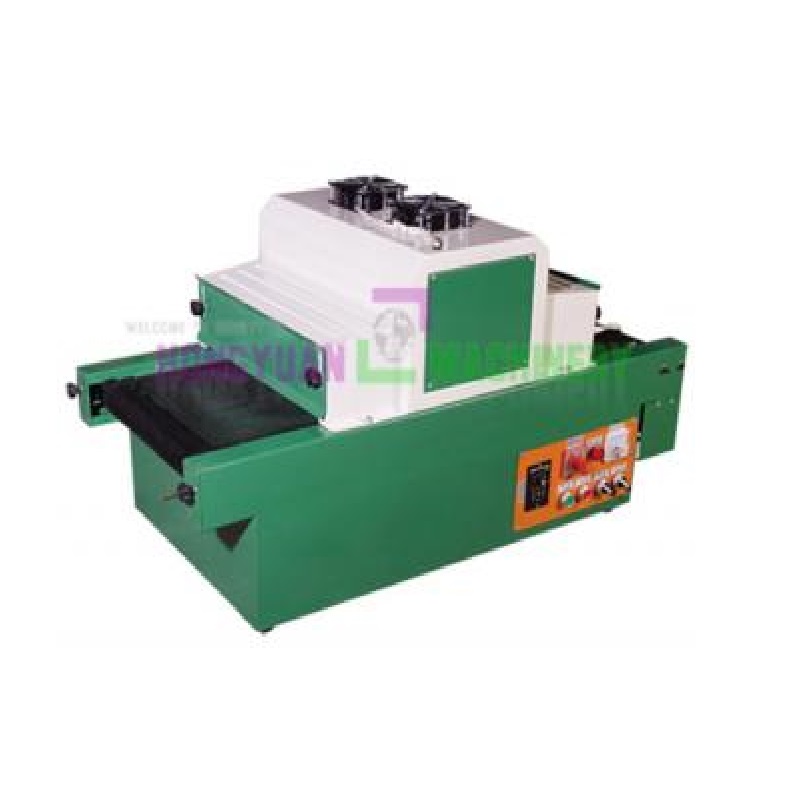

Hoystar GW-UV300A Desktop UV Curing Machine

Outside dimension: 1200*660*600mm (L×W×H);

The length of inlet: 250 mm；

The length of output: 270 mm；

Inlet point height: 10-120mm

The width of conveyor belt: 300 mm；

The material of belt: teflon (imported)；

Light tube power: 2KW*1PCS

The width of light shine: 300mm；

Convey motor: 25W/1set

Convey speed: 0-12m/min (can be adjustable)

Power supply: single phase 220v
