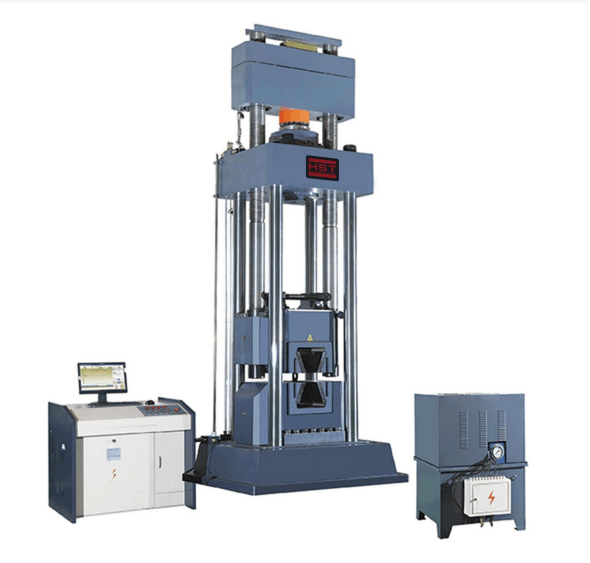

HST WAW-3000D Hydraulic Universal Testing Machine (50-3000kN)

Max. Load(kN):  3000

Load accuracy:  Class 1

Load range:  50-3000kN

Load resolution : Capacity/300, 000 (fully auto scaling of single

Stroke:  300mm

Test speed(mm/min):  0-80

Adjustable crosshead speed(mm/min):  50

Clearance between grips(mm) : 1000 (excluding ram stroke)

Clearance between platens(mm):  800

Nominal maximum specimen sizes:  Diamater(mm) Φ20~Φ50, Φ50~Φ80, Φ80~Φ110

Nominal maximum specimen sizes:  Thickness(mm) 0~50, 50~100

Nominal maximum specimen sizes : Width(mm) 110

Platen dimensions(mm):  280

Speed accuracy:  within ±1% / ±0.5% of set speed

Adjustable crosshead speed(mm/min):  260

Load frame(mm):  1,460*970*5,000

Weight(kg):  25500
