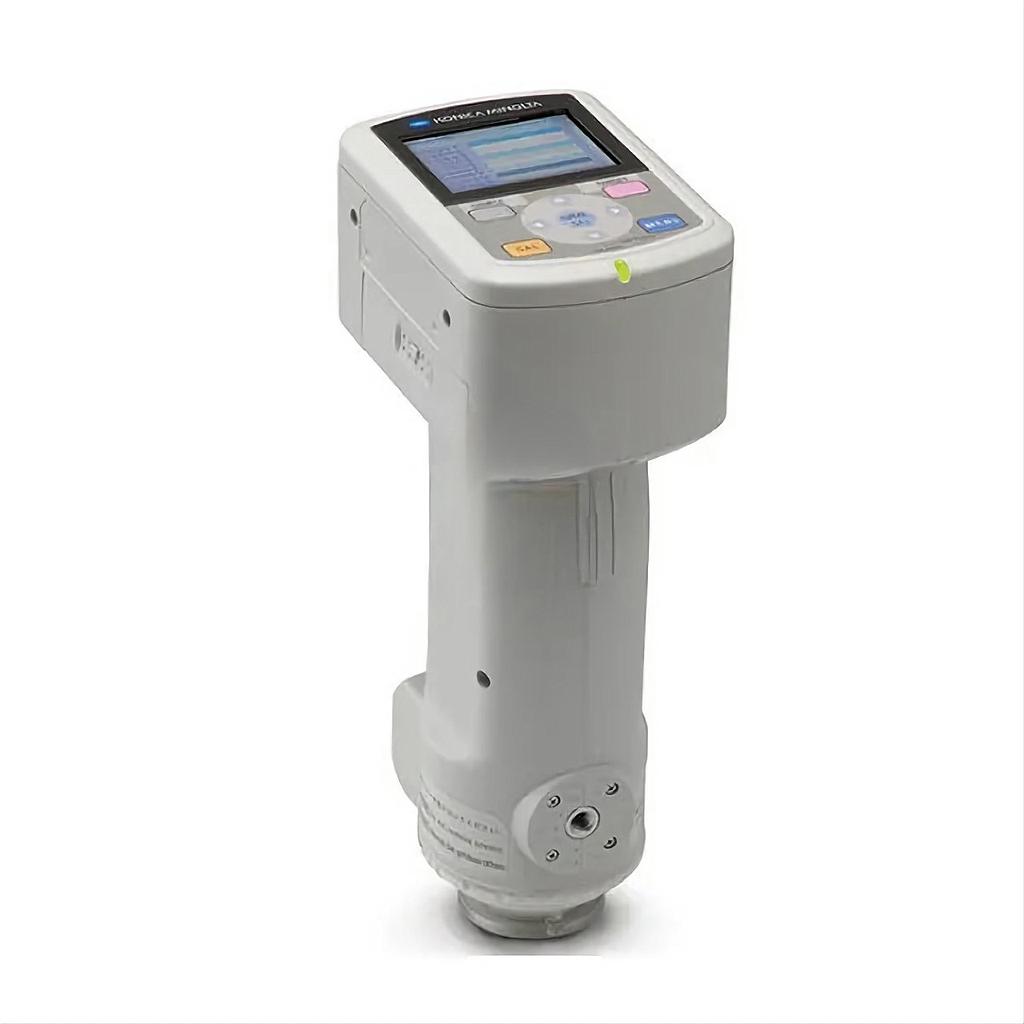

KONICA MINOLTA CM-700d Spectrophotometer (400nm~700nm)

Illumination/ viewing system: di: 8°, de: 8° (diffused illumination, 8-degree viewing angle), SCI (specular component included)/SCE (specular component excluded) selectable with automatic switching (Conforms to CIE No. 15, ISO 7724/1, DIN5033 Teil 7, ASTM E 1164, and JIS Z 8722)

Integrating sphere size: ø40 mm

Detector: Silicon photodiode array (dual 36-element)

Spectral separation device: Diffraction grating

Wavelength range: 400 nm to 700 nm

Wavelength pitch: 10 nm

Half bandwidth: Approx. 10 nm

Reflectance range: 0 to 175%, Display resolution: 0.01%

Light source: Pulsed xenon lamp (with UV cut filter)

Measurement time: Approx. 1 second

Minimum measurement interval: Approx. 2 seconds (in SCI or SCE mode)

Battery performance: With alkaline dry batteries: Approx. 2,000 measurements

                                  * Stand-alone continuous measurement fixed to either SCI or SCE mode at 10-second intervals at 23°C

Measurement/illumination area: MAV: ø8 mm/ ø11 mm SAV: ø3 mm/ ø6 mm

                                                   * Changeable by replacing target mask and selecting lens position

No. of averaging measurements: 1 to 10 (Auto averaging), 1 to 30 (Manual averaging)

Display: 2.36-inch TFT color LCD

Interface: USB1.1; Bluetooth® standard version 2.1+EDR*

Observer: 2° or 10° Standard Observer

Illuminant: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (Simultaneous evaluation with two light sources possible)

Displayed data: Spectral values/graph, colorimetric values, color difference values/graph, PASS/FAIL result, pseudocolor, color assessment

Data memory: Measurement data: 4,000 sets/Target color difference data: 1,000 sets

Power: Special AC Adapter; 4 AA-size alkaline dry batteries or nickel-metal-hydride rechargeable batteries

Size (W x H x D): 73 x 211.5 x 107 mm

Weight: Approx. 550 g (without white calibration cap and batteries)

Operation temperature/ humidity range: 5 to 40°C, relative humidity 80% or less (at 35°C) with no condensation

Storage temperature/ humidity range: 0 to 45°C, relative humidity 80% or less (at 35°C) with no condensation
