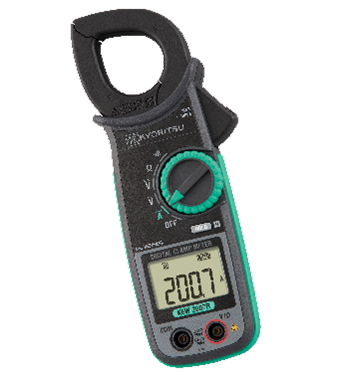

KYORITSU 2007R AC Digital Clamp Meters (600AAC, 600V)

AC A: 600.0/1000A (Auto-ranging)

      ±1.5%rdg±4dgt [45 - 65Hz]

      ±2.0%rdg±4dgt [40 - 400Hz]

AC V: 600.0V

      ±1.2%rdg±3dgt [45 - 65Hz]

      ±1.5%rdg±4dgt [40 - 400Hz]

DC V: 600.0V

      ±1.2%rdg±3dgt

Ω: 600.0Ω/6.000kΩ (Auto-ranging)

   ±1.3%rdg±5dgt (600Ω)

   ±2.0%rdg±3dgt (6.000kΩ)

Continuity buzzer: 600Ω (Buzzer sounds below 90Ω)

Conductor size: φ33mm max.

Applicable standards: IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2

      IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,

      IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)

Power source: R03/LR03 (AAA) (1.5V) × 2

Continuous measuring time: Approx.170 hours (when R03 is used)

  (Auto power save : approx. 10 minutes)

Dimensions: 204(L) × 81(W) × 36(D)mm

Weight: 220g Approx. (including batteries)

Included Accessories: 7066A (Test leads),9079 (Carrying case),R03 (AAA) × 2,
