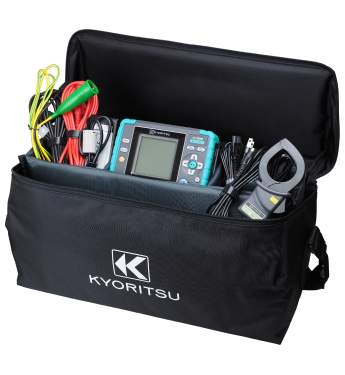

KYORITSU 5050-02 Ior Logger

Included in the set model

5050 (Ior Logger)

8177 (Ior Leakage current Clamp Sensor:φ40mm)

7219 (USB cable)

7273 (Voltage test lead)

7278 (Earth cable)

8262 (AC adapter)

8326-02 (SD card 2GB)

9125 (Carrying case)

KEW Windows for KEW 5050 (software)

Cable marker

LR6(AA) × 6


Wiring Configuration:1P2W, 1P3W, 3P3W, 3P4W

Measurements and Parameters
Ior : Leakage current (Trms) with resistive components only
Io : Leakage current (Trms) with basic wave of 40 to 70 Hz
Iom : Leakage current (Trms) including harmonic components
V : Reference voltage (Trms) with basic wave of 40 to 70 Hz
Vm : Reference voltage (Trms) including harmonic components
R : Insulation resistance, frequency (Hz), phase angle

Other Functions: Digital output, print screen, back light, data hold
Recording Interval: 200/400 ms/1/5/15/30 s/1/5/15/30 m/1/2 hours
Ior Range: 10/100/1000 mA/10 A/AUTO
Voltage Range: 1000 V
Phase Angle Display Range: 0 to ±180° (regarding the phase of reference voltage as 0°)
Frequency Meter Range: 40 to 70 Hz
Power Source: 6 x 1.5 V AA LR6 (Battery life approx. 11h)
Applicable Standards:
IEC61010-1 CATIV 300V , CATIII 600V Pollution degree 2
IEC61010-2-030 , IEC61010-031 , IEC61326
