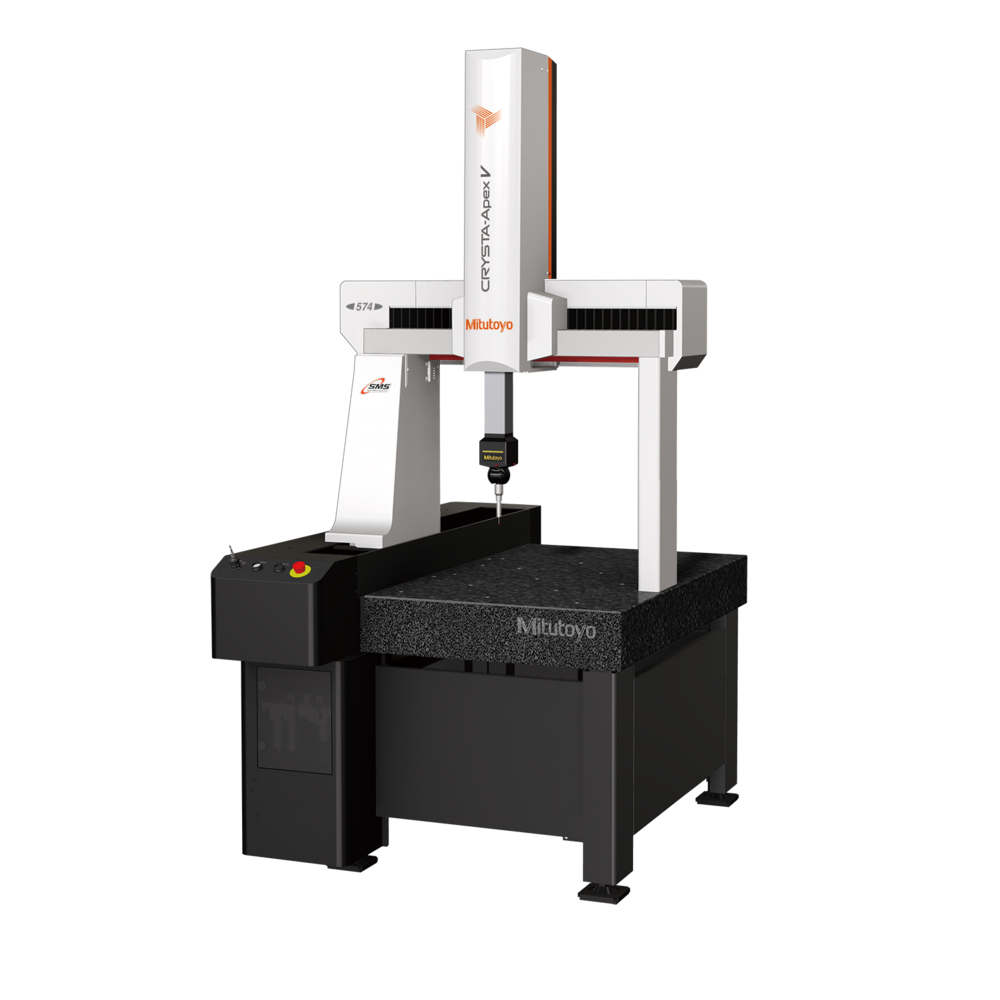

MITUTOYO CRYSTA-APEX V574 Coordinate Measuring Machine (500x700x400mm)

Accuracy: E0, MPE from: (1,7+0,3L/100) µm

Width:  1,082

Depth: 1548 mm

Height: 2,185

Mass: 955.0

E0,MPE: With SP25M: (1,7+4L/1000) µm;

               With TP200: (1,9+4L/1000) µm;

               With TP20: (2,2+4L/1000) µm;

               L = measured length [mm]

Max. drive speed: 519 mm/s (3-axis)

3D Acceleration: 2,309 mm/s2

Air supply: Pressure = 0,4

Range: 500 x 700 x 400

Comments: Anti vibration stand

Loading Height: 545

Digital step: 0.1 µm
