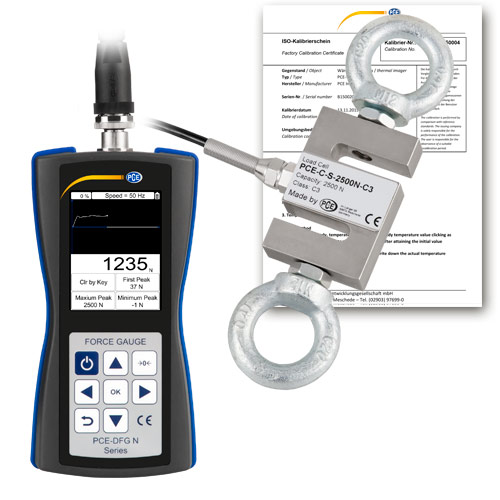

PCE DFG N 2.5K-ICA Force Gauge (0~2.500 N; 1 N; ISO Calibration Cert.)

Measuring range: 0 ... 2,500 N / 0 ... 562 lbs

Resolution: 1 N / 0.22 lbs

Accuracy: ± 0.1% of the measuring range

Measurement units: N, kg, lb, KPa

Display: 2.8" TFT graphic display

Alarm Modes: Inside, Outside, Crack, Shutdown

Sampling rate: 6 ... 1600 Hz

Storage: 100 measurements

Power supply: NiMH battery, 6V / 1600-mAh

Battery life: About 10 hours

Power adapter / charging adapter: 12V / 1A

Outputs: Interface: USB

Switching output: 12V / 50-mA

Protection class: IP 54

Operating and storage conditions: -10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing

Mounting thread: measuring cell

up to 1,000 N / 225 lbs

2,500 ... 10,000 N / 562 ... 2,248 lbs

M10

M12

Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7

Weight: 540 g / 1.2 lbs

Delivery Scope:

1 x Force gauge PCE-DFG N 2.5K-ICA

1 x Load cell

2 x Eyebolt

1 x USB cable

1 x Charger

1 x PC software

1 x User manual

1 x ISO Calibration certificate

Details

Datasheet


Manual


Diagram
