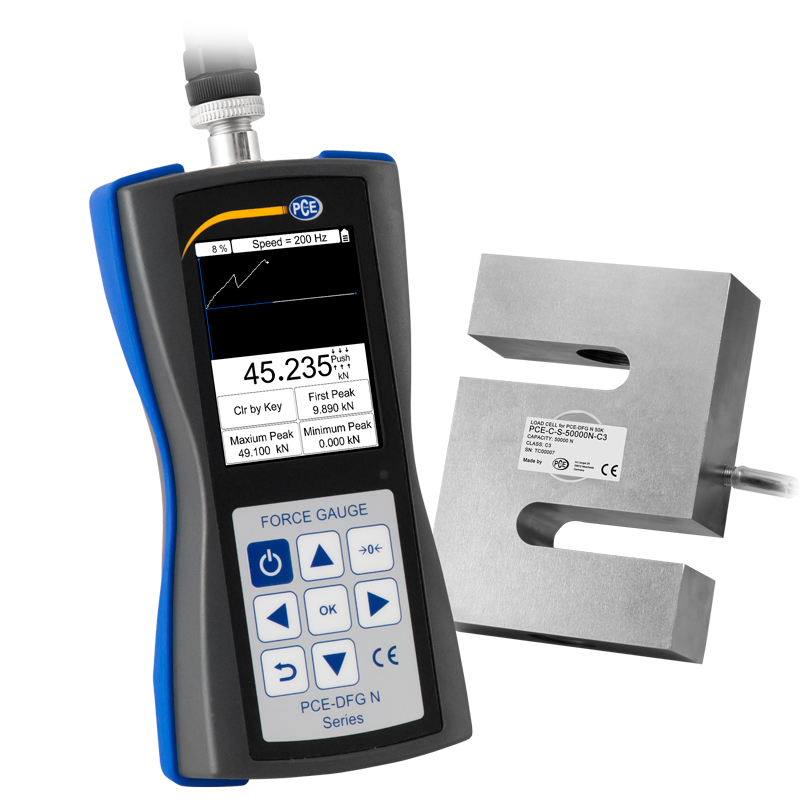

PCE DFG N 50K Force Gauge (0~50 kN; 0,005 kN)

Measuring range: 0 ... 50 kN / 5,000 kg / 5 t

Resolution: 0.005 kN / 5 N

Accuracy: ±0.2% of the measuring range

Measurement units: kN, t, klb, MPa

Display: 2.8" TFT graphic display

Alarm modes: Inside, Outside, Crack/Overload, Shutdown

Sampling rate: 6 ... 1600 Hz

Memory: 100 measurements

Power supply: NiMh battery, 6 V / 1600 mAh

Battery life: approx. 10 hours

Power supply / charging adapter: 12 V / 1 A

Outputs: interface: USB

switching output: 12 V / 50 mA

Protection class handset: IP 54

Protection class load cell: IP 67

Operating and storage conditions: -10 ... 50 °C; 5 ... 95 % r.h. not condensing

Dimensions of load cell: L 76.2 mm / H 101.6 mm / W 27.2 mm / M20 x 1.5 thread / 2800 g (see technical drawing)

Cable length load cell: ca. 6 m

Dimensions of handset: 200 x 97 x 42 mm

Weight of handset: 540 g

Delivery Scope:

1 x Force Gauge PCE-DFG N 50K

1 x Load cell (depending on model)

1 x USB cable

1 x Charger

1 x PC software

1 x User manual

(Eye bolts optional, see accessories)
