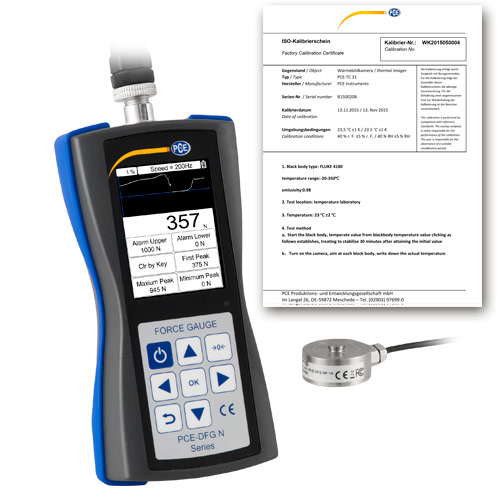

PCE DFG NF 1K-ICA Force Gauge ( 0~1 kN; 0,1 N; ISO Calibration Cert.)

Measuring range: 0 ... 1 kN / 1,000 N / 102 kg / 225 lbs

Resolution: 0.1 N / 0.02 lbs

Accuracy: ± 0.5% of the measuring range

Measurement units: N, kg, lb, kPa

Display: 2.8" TFT graphic display

Alarm Modes: Inside, Outside, Crack, Shutdown

Sampling rate: 6 ... 1600 Hz

Storage: 100 measurements

Power supply: NiMH battery, 6V / 1600-mAh

Battery life: About 10 hours

Power adapter / charging adapter: 12V / 1A

Outputs: Interface: USB switching output: 12V / 50-mA

Protection class: IP 54

Operating and storage conditions: -10 ... 50°C / -14 ... 122°F; 5 ... 95% rh non-condensing

Dimensions load cell: Ø 20 mm / H 12 mm / M3 thread (see technical drawing)

Cable length load cell: About 3 m / 9.8 ft

Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in

Weight: 540 g / 1.2 lbs

Delivery Scope:

1 x Force Gauge PCE-DFG NF 1K

1 x Load cell (depending on model)

1 x USB cable

1 x Charger

1 x PC software

1 x User manual

1 x ISO calibration certificate
