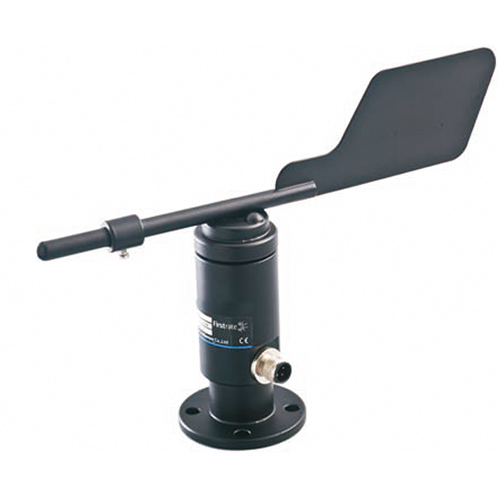

PCE FST-200-202-H-U Air Flow Meter (0~360°)

Output signal: 0 … 10V DC

Operating voltage: 12 … 36V DC

Resolution: 22.5°

Measurement reading range: 0 … 360°

Measurement readings from: ≤ 0.8 m/s (1.8 mph)

Measurement reading accuracy: ± 3°

Electrical resistance: 250 Ω

Heat output: 10 W at 24V DC

Operating voltage:12 … 36V DC

Maximum wind speed: 70 m/s (156.6 mph) at max. 30 minutes

Power connection: M12

Protection class: IP55

Delivery Scope:

1 x Air Flow Meter PCE-FST-200-202-H-U

1 x Plug M12

1 x 3 m / 9.8 ft cable

1 x Operating Manual

Details

Datasheet


Manual
