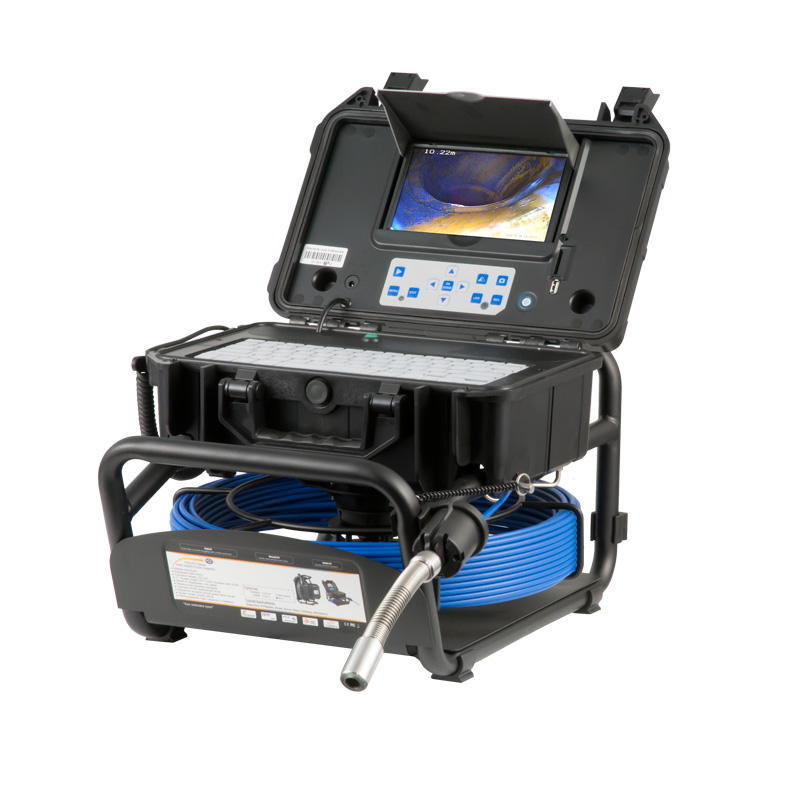

PCE PIC 40 Drain Camera (40 m; 20~100 cm)

Cable diameter / head diameter: 23 mm / 0.9 in

Cable length: PCE-PIC 40: 40 m / 131 ft

Sight depth: 20 ... 100 cm

Perspective: 120°

Lighting: 12 x LED (dimmable)

White balance: Automatically

Image sensor:1/3" Sony CCD; 720 x 576 pixels

Display: 7" LC display

Interface: USB 2.0

Memory option: Video, photo and sound

Image memory: SD card up to 32 GB

Video output format: PAL 720 x 576 pixels; NTSC 720 x 488 pixels

Menu navigation: Multilingual: German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian

Length measurement: 0 ... 40 m / 0 ... 131 ft

Data entry: By keyboard possible

Operating conditions: -10 ... 50°C / 14 ... 122°F, 30 ... 90% rh

Storage conditions: -20 ... 60°C / -4 ... 140°F, 30 ... 90% rh

Power supply: Power supply 110V ... 240V AC / 12V / 1.2 A DC; Li-Ion battery 7.4 / 5400-mAh

Protection class: Display: IP66

Camera head: waterproof up to 20 m / 66 ft

Dimensions: Complete: 55 x 43.5 x 34.5 cm

Camera head: 23 x 45 mm / 0.9 x  1.8 in (total length: 150 mm / 5.9 in)

Weight About 13 kg / 28.7 lbs

Delivery Scope:

1 x Drain camera PCE-PIC 40

1 x Standard camera head

1 x Main unit with case

1 x Cable roller and push cable

1 x Mains power adapter

1 x Car charger adapter

1 x Keyboard

1 x Remote control

1 x 46 mm / 1.8 in guide

1 x 80 mm / 3.1 in guide

1 x User manual

Please note: The video endoscopes are not suitable for medical purposes!
