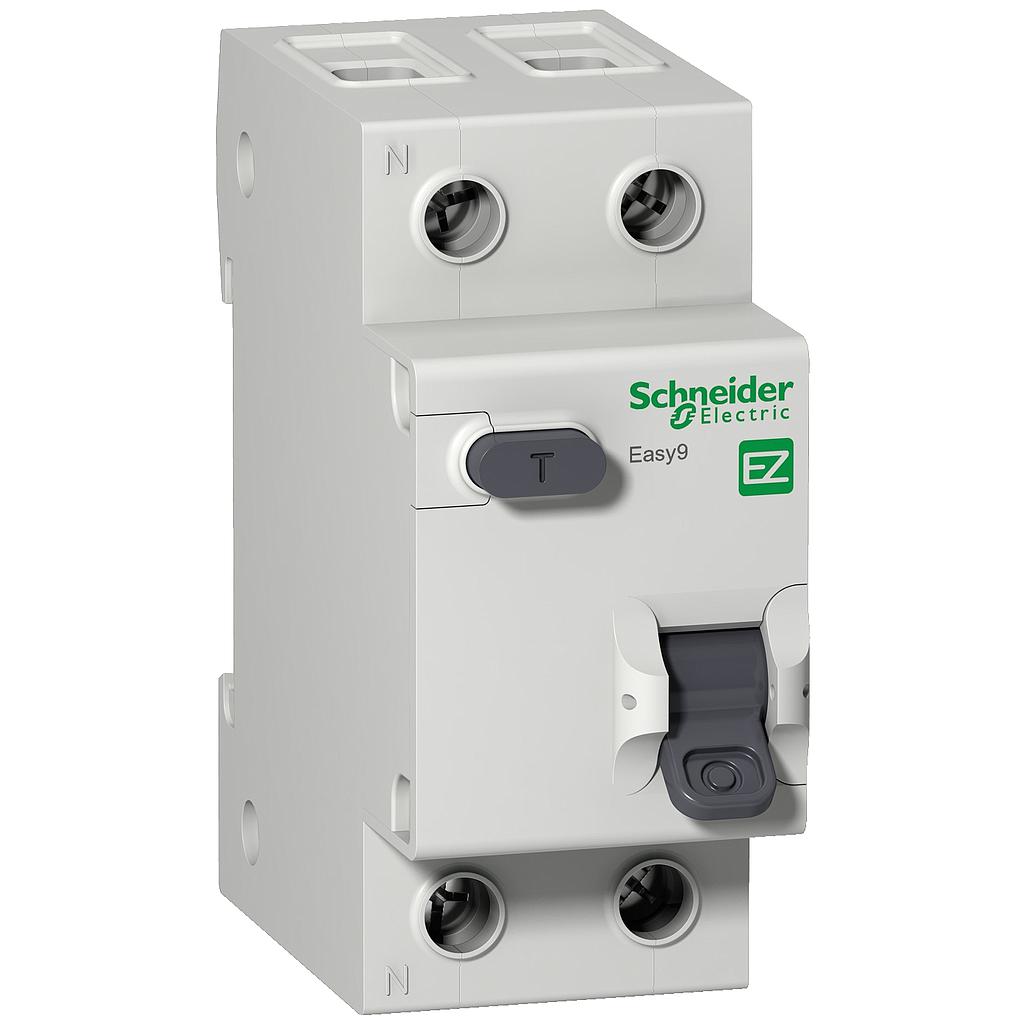

SCHNEIDER EZ9D34620 Residual Current Breaker with Overcurrent Protection (1P+N - 20A - C)

Main

- Range: Easy9

- Poles: 1P + N

- Neutral position: Left

- [In] rated current: 20 A

- Network type: AC

- Trip unit technology: Thermal-magnetic

- Curve code: C

- Earth-leakage sensitivity: 30 mA

- Earth-leakage protection time delay: Instantaneous

- Earth-leakage protection class: Type AC

- Breaking capacity: 4500 A Icn at 230 V AC 50 Hz conforming to IEC 61009-1

Complementary

- [Ue] rated operational voltage: 230 V AC 50 Hz

- Magnetic tripping limit: 5...10 x In

- [Ui] rated insulation voltage: 500 V

- [Uimp] rated impulse withstand voltage: 4 kV

- Mounting support: DIN rail

- 9 mm pitches: 4

- Height: 81 mm

- Width: 36 mm

- Depth: 66.5 mm

Environment

- Standards: IEC 61009-1

- Product certifications: EAC; GOST

- Relative humidity: 95%

- Ambient air temperature for operation: -25…60°C

- Ambient air temperature for storage: -40…70°C

Details

DATASHEET

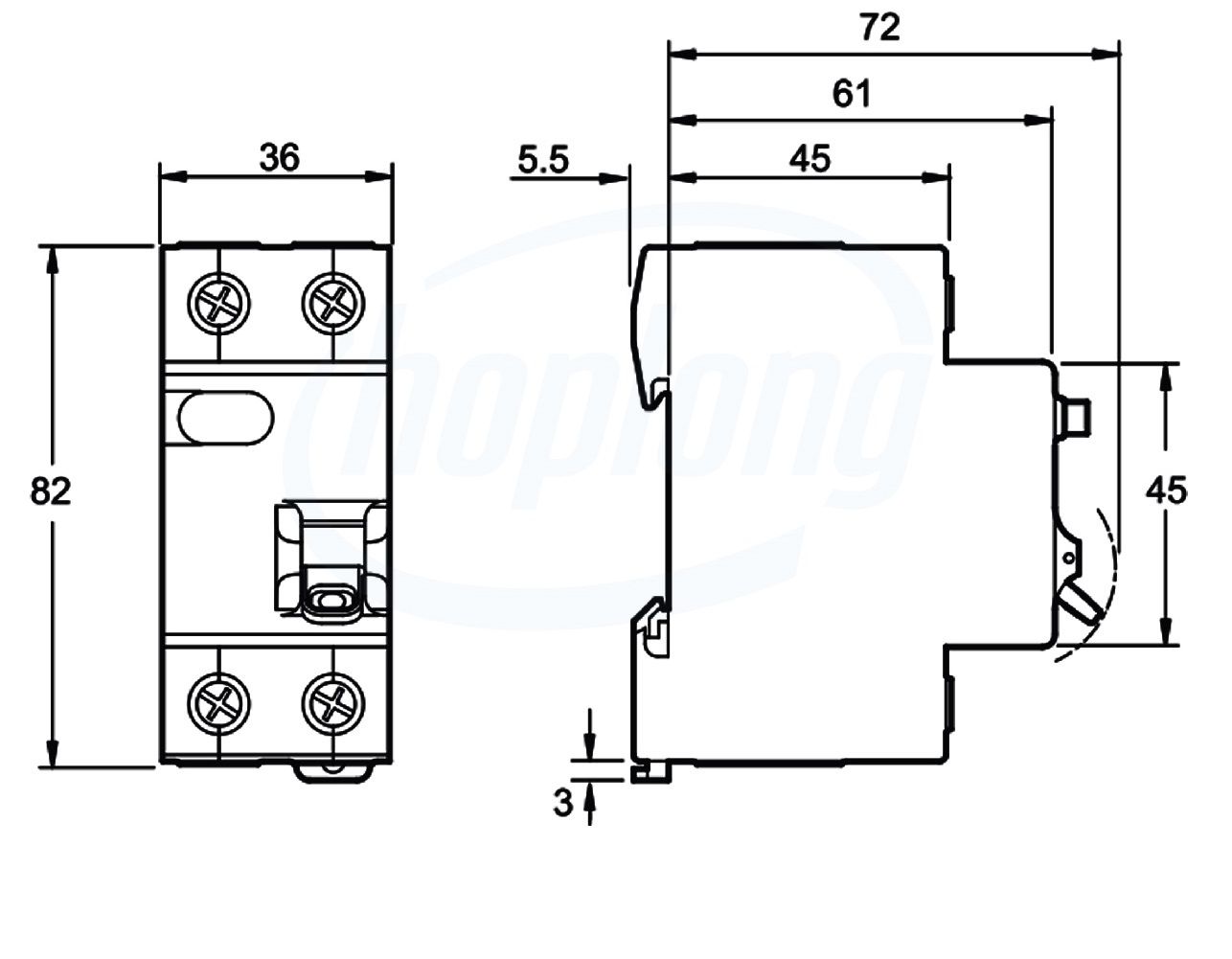

DIMENSIONS
