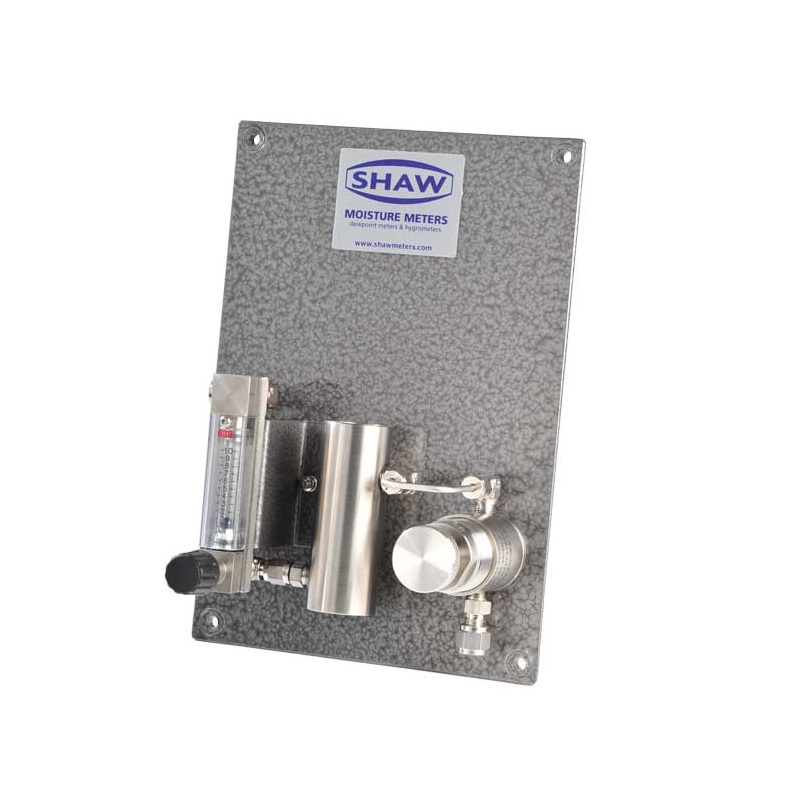

Shaw SU4 Sample Conditioning Unit

Designed for gas or general compressed air sampling

Reduce inlet pressure from up to 210 bar (3045 psi)

Adjust sample flow up to 10 litres per minute

All stainless steel fittings and pipework

Inlet and outlet fittings with a choice of ⅛”, ¼” or 6 mm

compression fittings

Sampling options: Input pressure (pr): Up to 200 bar (MED), 400 bar (HI)

Wall mounted with 4 x 5 mm mounting holes at 240 mm (h) x 140 mm (w)

Overall dimensions: 260 mm (h) x 179 mm (w) x 135 mm (d)

Approximate weight: 1.6 - 1.8 kg
