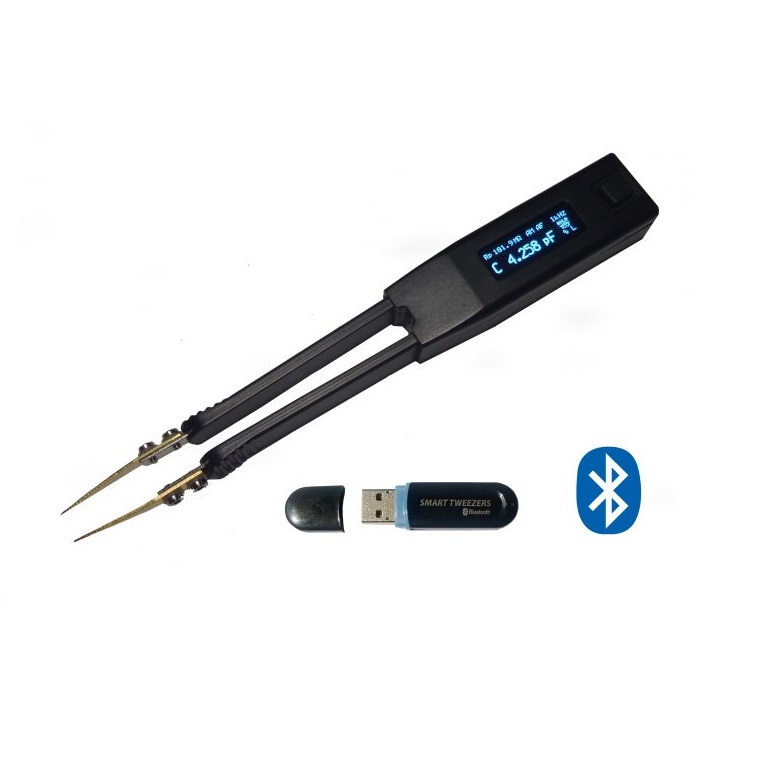

Smarttweezers ST5S-BT LCR Meter and Component Identifier (100 Hz-10 kHz)
Manufacturer: Smarttweezers Model: ST5S-BT - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Technical Specifications
AC test mode Test frequency: 100 Hz, 120 Hz, 1kHz, 10kHz
Test frequency accuracy: 50 PPM (0.005%), 0.3% for 120Hz
Test signal level: 0.41/0.91 +/- 10% Vrms Sine wave
Source impedance: 100Ω +/- 1%
Measurement Ranges
Resistance R: 0.05 Ω to 9.9 MΩ
Capacitance C: 0.5 pF to 9999 μF
Inductance L: 0.5 uH to 999 mH
Quality factor Q: 0.001 to 1000
Dissipation factor D: 0.001 to 1000
Physical Specifications
Size: 15.0 x 1.8 x 1.5 cm (5.9 x 0.7 x 0.6 in)
Weight: 29 grams (0.06 lb)
Operating temperature: 0°C to 50°C
Battery Type: 3.7V LiPO rechargeable 180mAH
Battery Life (continuous): 20 hours, 3 hours charging cycle
