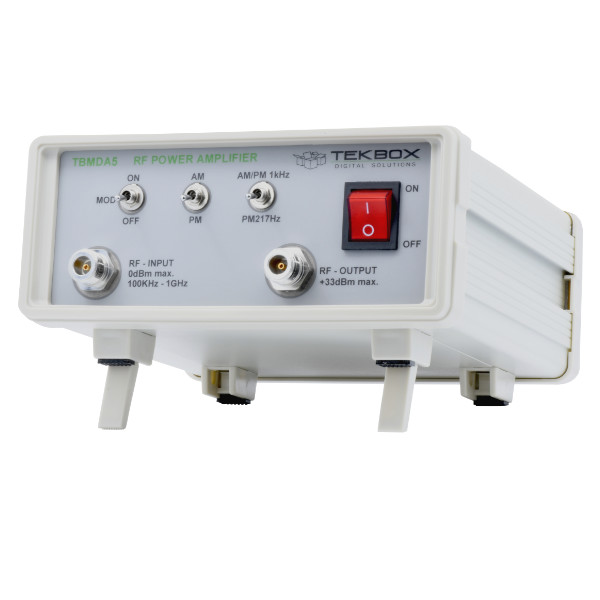

Tekbox TBMDA5 Modulated Power Amplifier (150 kHz - 400 MHz)

Input / Output: 50 Ohm, N female

Supply Voltage range: 110 V…240 V

Supply power consumption: 19 W @ 220V

Operating temperature range: -20°C to 50°C

Frequency range: 150 kHz – 400 MHz, usable from 100 kHz to 1.2 GHz Small signal gain: 38 dB typ.

Gain flatness 150 kHz – 400 MHz / Pin = -5 dBm: 3.5 dB typ.

Saturated output power @ 150 kHz / Pin = 0 dBm: 32.6 dBm (1.8 W) typ.

Saturated output power @ 500 kHz / Pin = 0 dBm: 36 dBm (4 W) typ.

Saturated output power @ 1 MHz / Pin = 0 dBm: 36.1 dBm (4.1 W) typ.

Saturated output power @ 10 MHz / Pin = 0 dBm: 37.8 dBm (6 W) typ.

Saturated output power @ 100 MHz / Pin = 0 dBm: 36.4 dBm (4.4 W) typ.

Saturated output power @ 250 MHz / Pin = 0 dBm: 36 dBm (4 W) typ.

Saturated output power @ 400 MHz / Pin = 0 dBm: 33.7 dBm (2.3 W) typ.

Saturated output power @ 750 MHz / Pin = 0 dBm: 33.2 dBm (2.1 W) typ.

Saturated output power @ 1 GHz / Pin = 0 dBm: 34.8 dBm (3 W) typ.

Saturated output power @ 1.1 GHz / Pin = 0 dBm: 31.1 dBm (1.3 W) typ.

Saturated output power @ 1.2 GHz / Pin = 0 dBm: 27.3 dBm (0.5 W) typ.

1dB output compression point @ 150 kHz: +29.6 dBm typ. (Pin: -9 dBm)

1dB output compression point @ 500 kHz: +32.9 dBm typ. (Pin: -6 dBm)

1dB output compression point @ 1 MHz: +33.1 dBm typ. (Pin: -5 dBm)
