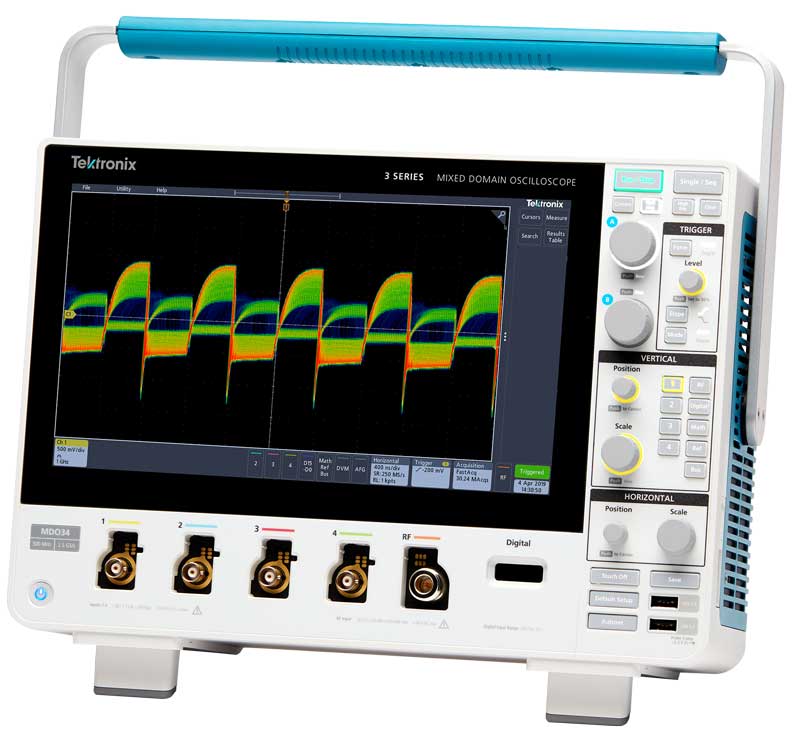

TEKTRONIX MDO34 Mixed Domain Oscilloscopes (Opt MDO34 3-BW-1000 1Ghz, 4 CH, 5Gs/s)

Analog channel bandwidth 1GHz

Rise time (typical, calculated)

(10 mV/div setting with

50 Ω input termination) 400ps

Sample rate (1 ch) 5 GS/s

Record length (1 ch) 10 M

Digital channels with 3-MSO option 16

Arbitrary Function Generator outputs with 3-AFG option

Spectrum analyzer channels (Option)

Vertical system analog channels

Hardware bandwidth limits

≥350 MHz models 20 MHz or 250 MHz

100 MHz and 200 MHz models 20 MHz

Input coupling AC, DC

Input impedance 1 MΩ ±1%, 50 Ω ±1%

Input sensitivity range

1 MΩ 1 mV/div to 10 V/div

50 Ω 1 mV/div to 1 V/div

Vertical resolution

8 bits (11 bits with Hi Res)

Maximum input voltage

1 MΩ 300 V RMS CAT II with peaks ≤ ±425 V

50 Ω 5 V RMS with peaks ≤ ±20 V

input/output ports

USB 2.0 high-speed host port Supports USB mass storage devices and keyboard. Two ports on front and one port on rear of instrument.

USB 2.0 device port Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB (with a TEK-USB-488).

Printing Print to network printer or to a printer that supports e-mail printing. Note: This product includes software developed by the

OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)

LAN port RJ-45 connector, supports 10/100 Mb/s

HDMI port 19-pin, HDMI type connector

Auxilliary input (typical)
