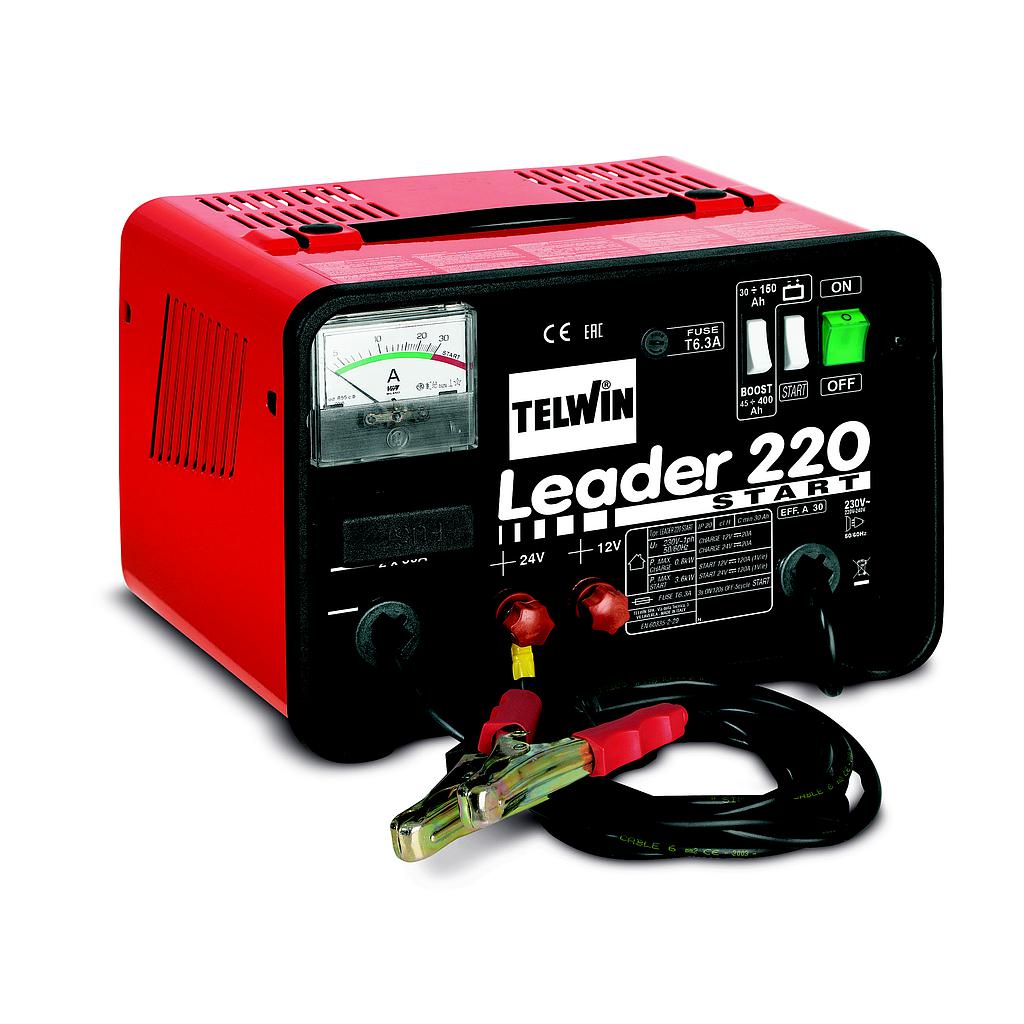

Telwin LEADER 220 START 230V (0,8 KW)

EFFECTIVE CHARGING CURRENT: 30 A

ADJUSTMENT POSITIONS: 2

SINGLE PHASE MAINS VOLTAGE: 230 V

RATED CHARGE CURR.: EN60335-2-29 20 A

DIMENSIONS: 22,5 x 29 x 20,5 cm

MAINS FREQUENCY: 50 / 60 Hz

START CURRENT: 1V/C EN60335-2-29 120 A

WEIGHT: 9 kg

CHARGE POWER: 0,8 KW

MAX STARTING CURRENT: 180 A

START POWER: 3,6 KW

MIN. RATED REFERENCE CAPACITY: 30Ah

CHARGING VOLTAGE: 12 / 24 V

MAX RATED REFERENCE CAPACITY: 400 A

Included Accessories

CABLE 6 MMQ 2 M AND WORK CLAMP - 123569

CABLE 6MMQ 2 M POSITIVE CLAMP - 123588
