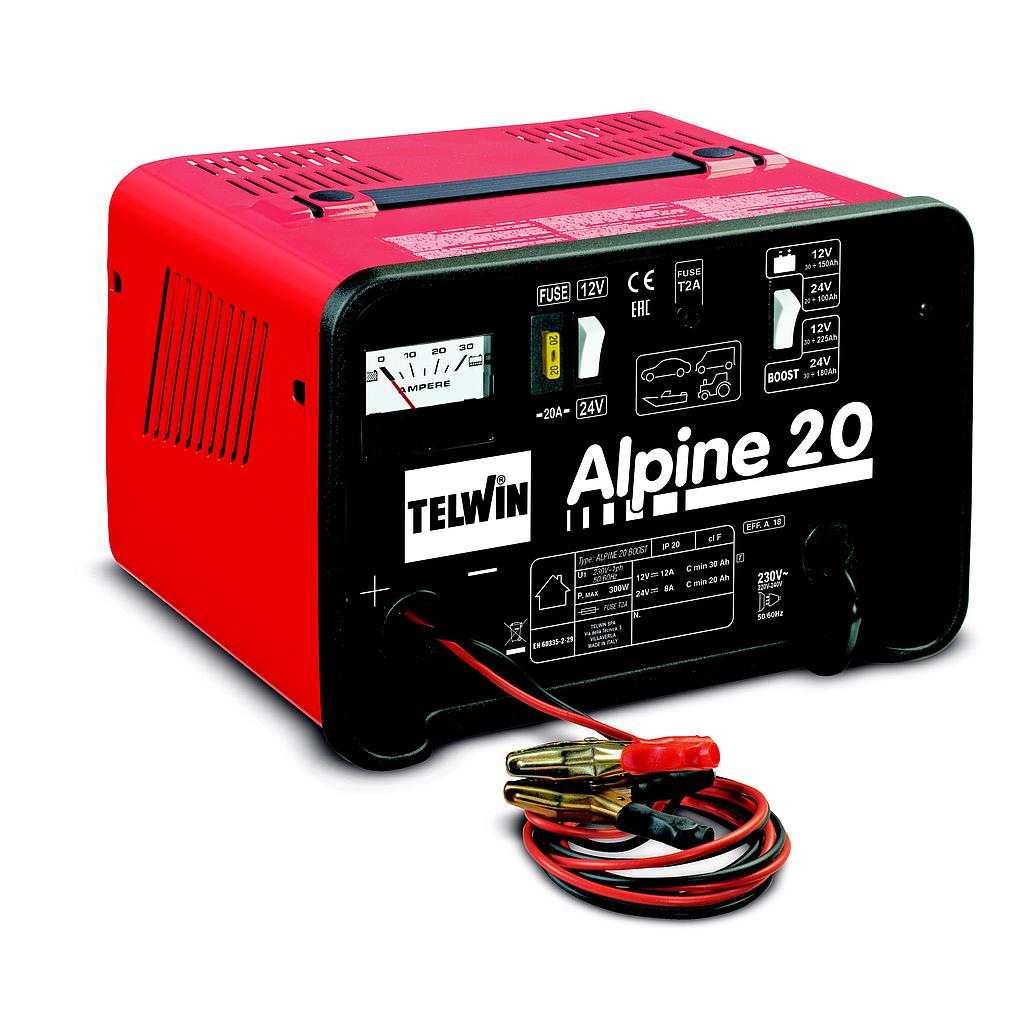

Telwin ALPINE 20 BOOST 230V 50/60HZ 12-24V (300 W)

EFFECTIVE CHARGING CURRENT: 18 /12 A

DIMENSIONS: 22,5 x 29 x 20,5 cm

SINGLE PHASE MAINS VOLTAGE: 230 V

RATED CHARGE CURR.: EN60335-2-29 12 / 8 A

WEIGHT: 6,9 kg

MAINS FREQUENCY: 50 / 60 Hz

MIN. RATED REFERENCE CAPACITY: 30 / 20 Ah

CHARGING ABSORBED POWER: 300 W

MAX RATED REFERENCE CAPACITY: 225 / 180 A

PIECES/PALLET: 56 pz/pallet

CHARGING VOLTAGE: 12 / 24 V

ADJUSTMENT POSITIONS: 2

PIECES/PALLET - B: 42 pz/pallet-B

Included Accessories

WORK CABLE 2,5 MMQ 1,5 M - 123985

COLORADO 40R POSITIVE CLAMP 40A - 712623

POSITIVE CABLE 2,5 MMQ 1,5 M - 123986

COLORADO 40B WORK CLAMP 40A - 712624
