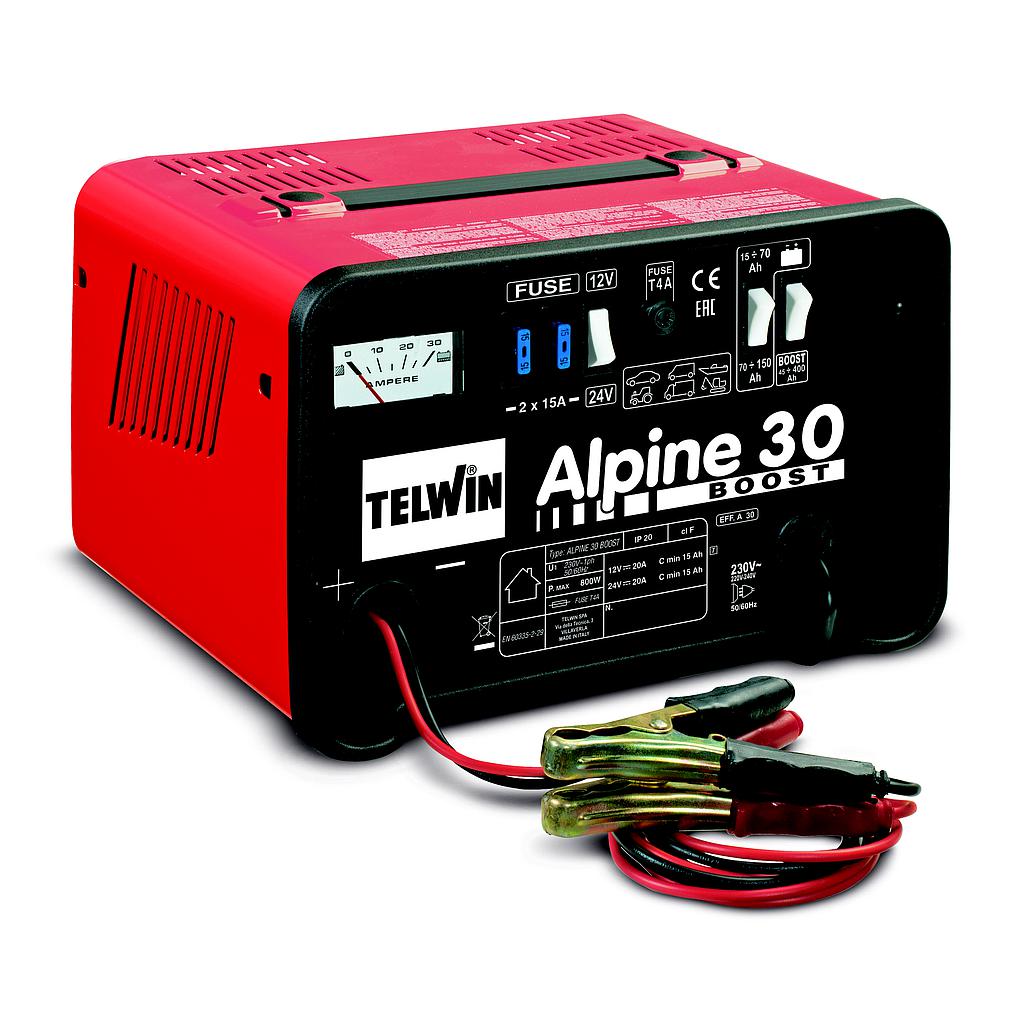

Telwin ALPINE 30 BOOST 230V 12-24V (800 W)

EFFECTIVE CHARGING CURRENT: 30 A

DIMENSIONS: 22,5 x 29 x 20,5 cm

SINGLE PHASE MAINS VOLTAGE: 230 V

RATED CHARGE CURR.: EN60335-2-29 20 A

WEIGHT: 8,6 kg

MAINS FREQUENCY: 50 / 60 Hz

MIN. RATED REFERENCE CAPACITY: 15 Ah

CHARGING ABSORBED POWER: 800 W

MAX RATED REFERENCE CAPACITY: 400 A

PIECES/PALLET: 56 pz/pallet

CHARGING VOLTAGE: 12 / 24 V

ADJUSTMENT POSITIONS: 3

PIECES/PALLET - B: 42 pz/pallet-B

Included Accessories

CABLE 4 MMQ 1,5 M AND WORK CLAMP - 123987

CABLE 4MMQ 1,5M + POSITIVE CLAMP - 123988
