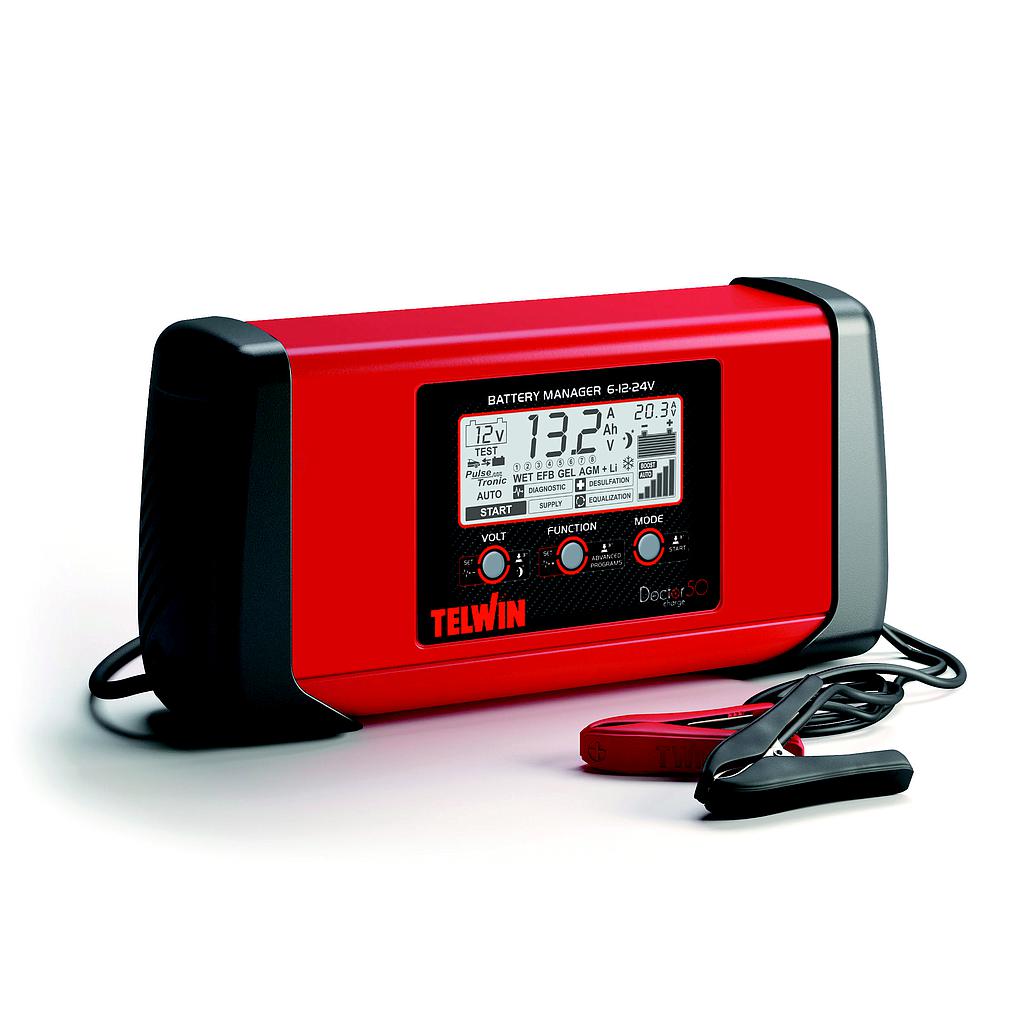

Telwin DOCTOR CHARGE 50 230V 6V/12V/24V

RATED CHARGE CURR.: EN60335-2-29 40 / 40 / 20 A

DIMENSIONS: 33 x 10 x 16 cm

SINGLE PHASE MAINS VOLTAGE: 230 V

START CURRENT: 1V/C EN60335-2-29 40 (Boost) A

WEIGHT: 3,7 kg

MAINS FREQUENCY: 50 / 60 Hz

START CURRENT: 1V/C EN60335-2-29 70 A

CHARGING ABSORBED POWER: 600 W

MIN. RATED REFERENCE CAPACITY: 10Ah

PIECES/PALLET: 99 pz/pallet

CHARGING VOLTAGE: 6 / 12 / 24 V

MAX RATED REFERENCE CAPACITY:600 A

PIECES/PALLET - B: 88 pz/pallet-B

EFFECTIVE CHARGING CURRENT: 45 /45 / 23 A

ADJUSTMENT POSITIONS: 7


Included Accessories

124874



Details

DATASHEET


MANUAL
